Black On-Off Latching 12mm Waterproof Push Button Switch IP65 SPST
SKU 490275
MPN: HBGQ12B-10Z/J/PA/H
Availability:
71 in stock
Original price
£3.31
-
Original price
£3.31
Original price
£3.31
£3.31
-
£3.31
Current price
£3.31

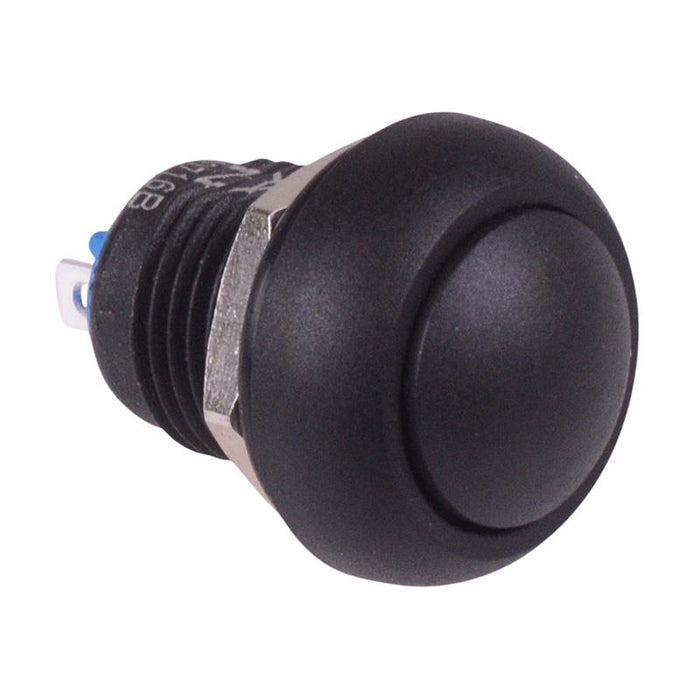

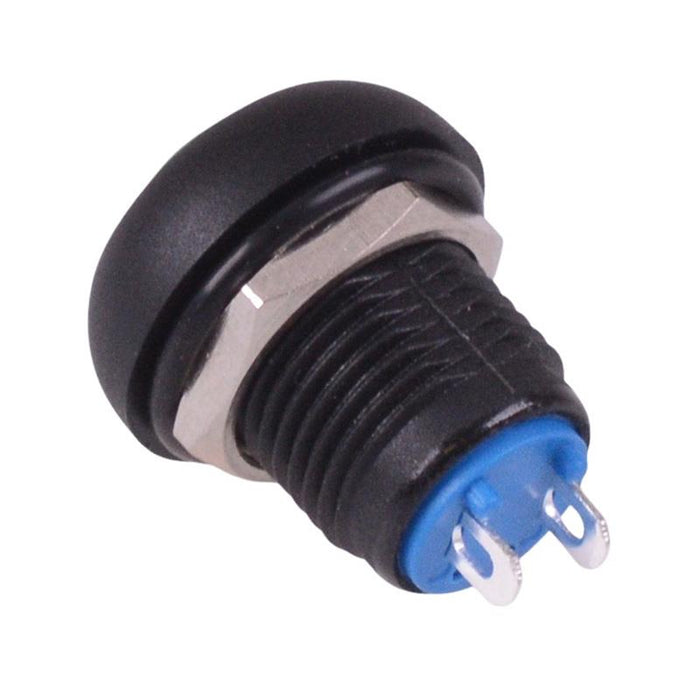

Black latching push button switch featuring a round actuator and SPST contacts. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Latching operation SPST contacts IP65 protection rating 2.8x0.5mm quick connect terminals Panel cut-out: 12mm Panel thickness: 6mm max Rating: 2A 250V Dimensions: 24.75 x 18mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 2A 250VAC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm Max |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
