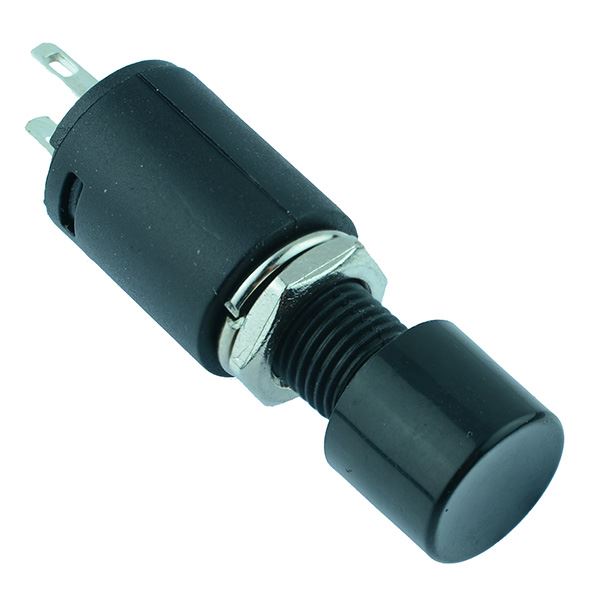

Black On-Off Latching Large Button Push Switch SPST R13-512B2-05

by SCI
SKU 480165

MPN: R13-512B2-05 Black

Availability:
1879 in stock
Original price £0.81 - Original price £0.81
Original price
£0.81
£0.81 - £0.81
Current price £0.81
R13-512B2 panel mount SPST On-Off push button latching switch featuring a large black actuator, solder contacts, suitable for a wide range of low power applications.

  • On-off operation
  • SPST contacts
  • Silver plated brass contacts
  • 7mm panel cut-out
  • 4mm maximum panel thickness
  • 10mm diameter button
  • Dimensions: 40.5 x 11.5 (Length x Diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 120 Days
    Colour Black
    Contact Configuration SPST
    Contact Rating 1.5A 250VAC
    Current Rating 1.5A
    Illuminated No
    Illumination Colour Non Illuminated
    Mounting Style Panel
    Number of Positions 2
    Panel Cut Out 7mm
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 250VAC
