Black On-Off Latching Square Push Button Switch 12mm SPST
by Canal
SKU 550409
MPN: PBS-12A black
Availability:
406 in stock
Original price
£0.83
-
Original price
£0.83
Original price
£0.83
£0.83
-
£0.83
Current price
£0.83

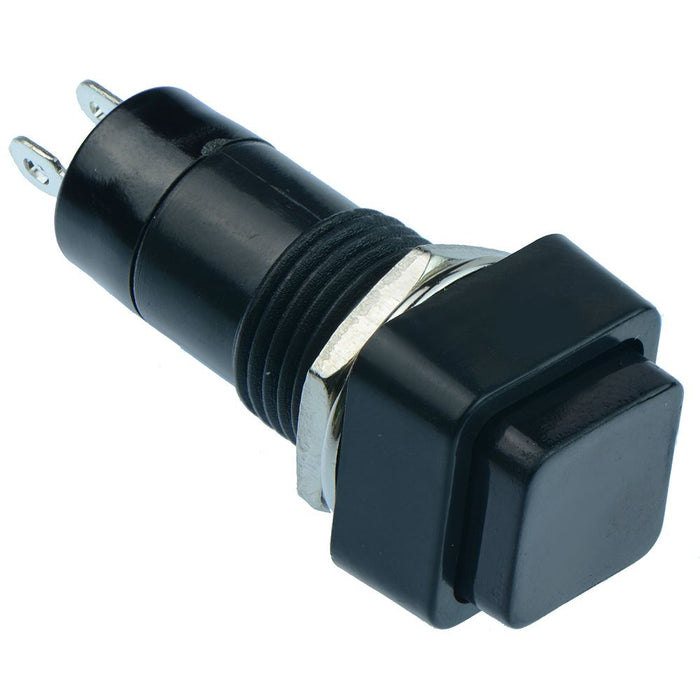

Latching push button switch featuring a square actuator and SPST contacts.
Panel cut-out: 12mm Button size: 11 x 11mm Rating: 1A 250VAC Solder lug terminals On-Off operation Dimensions: 38.4 x 15.5mm (Height x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 1A 250VAC |
| Current Rating | 1A |
| Electrical Life | 5000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Force | 300gf |
| Operating Temperature | 0°C to +65°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
