Black On-Off-On Rocker Switch 30 x 22.2mm DPDT 16A
SKU 487490
MPN: R535KKBT0F
Availability:
470 in stock
Original price
£1.10
-
Original price
£1.10
Original price
£1.10
Inc VAT
£1.10
-
£1.10
Current price
£1.10
Inc VAT

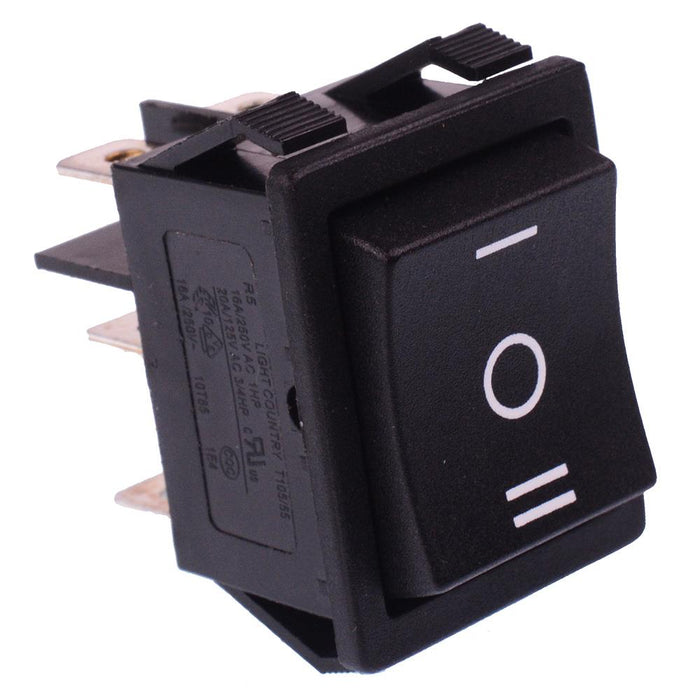

Black On-Off-On rocker switch featuring 30 x 22.2mm panel cut-out and DPDT contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
DPDT contacts On-Off-On function Rating: 16A 250VAC Panel cut-out: 22.2 x 30mm 6.35mm quick connect terminals
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | DPDT |
| Contact material | Silver Alloy |
| Contact rating | 16A 250VAC |
| Current rating | 16A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 30 x 22mm |
| Panel thickness | 0.7-3mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
