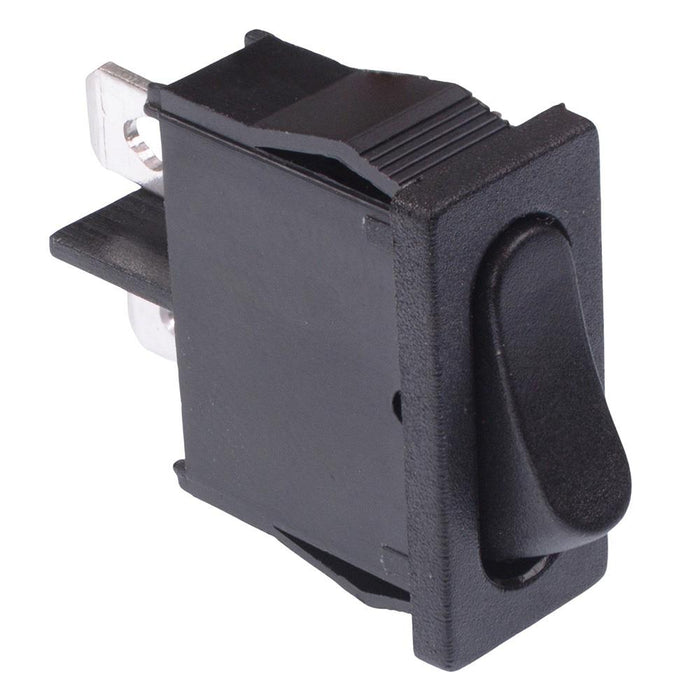

Black On-Off Slim Rocker Switch 19.3 x 6.7mm SPST 10A
SKU 487250
MPN: R612KKET
Availability:
9445 in stock
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
£0.48
-
£0.48
Current price
£0.48
Black On-Off rocker switch featuring a slim 19.3 x 6.7mm panel cut-out and SPST contacts. The switch features a 6A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts On-Off function Rating: 6A 250VAC, 10A 125VAC Panel cut-out: 19.3 x 6.7mm Dimensions: 21 x 9.6mm (length x width) 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 6A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.3 x 6.7mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
