Black On-On 2 Way 19mm Key Switch SPDT 4A LK6NGB126M3
by APEM
SKU 485823
MPN: LK6NGB126M3
Availability:
Out of stock
Sold out
Original price
£15.62
-
Original price
£15.62
Original price
£15.62
Inc VAT
£15.62
-
£15.62
Current price
£15.62
Inc VAT

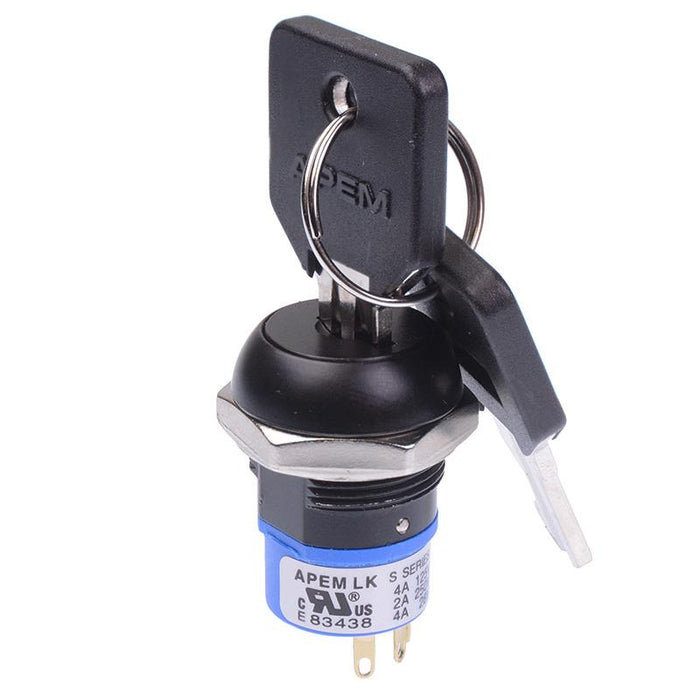

The LK6NGB126M3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SPDT contacts and 2 maintained positions with key withdrawal in position 1. The switch has a black finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
2 positions Maintained switching SPDT contacts Black finish Key withdrawal in position 1 Panel cut-out: 19mm Indexing: 90° Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC Mechanical and electrical life: 6000 cycles at full load Dimensions: 28.8 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | SPDT |
| Contact material | Gold Plated Copper Alloy |
| Contact rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current rating | 4A @ 125VAC / 28VDC |
| Electrical life | 6000 Cycles |
| Key index angle | 90° |
| Key withdrawal position | 1 |
| Mounting style | Panel Mount |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 19mm |
| Product series | LK |
| Protection level | Gold Plated Copper Alloy |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
