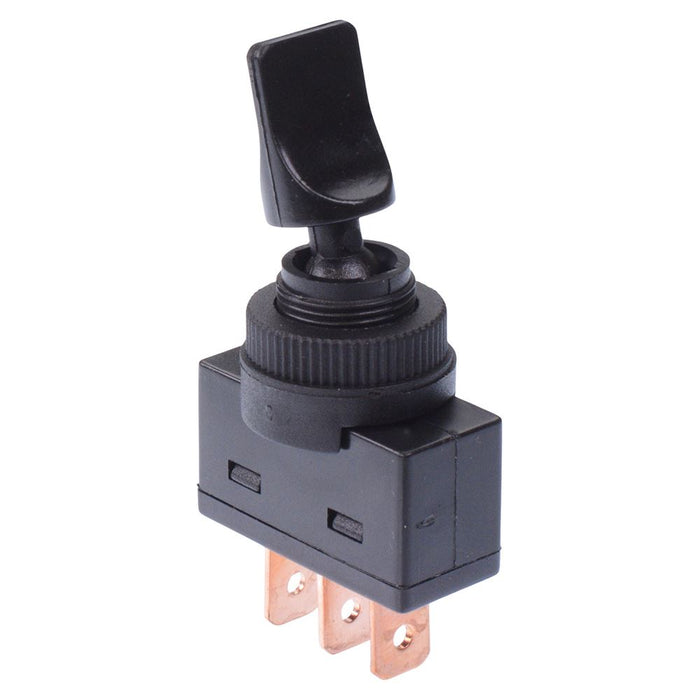

Black On-On Toggle Switch SPDT 20A 12V
SKU 486938
MPN: 486938
Availability:
286 in stock
Original price
£0.93
-
Original price
£0.93
Original price
£0.93
Inc VAT
£0.93
-
£0.93
Current price
£0.93
Inc VAT
Black toggle switch featuring an On-On operation and SPDT contacts. The switch features quick connect terminals, and is suitable for a wide range of automotive applications.
Operation: On-Off-On SPDT contacts Rating: 20A 12VDC Panel cut-out: 12mm 6.35mm quick connect terminals Dimensions: 54 x 26.2 x 12mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Black |
| Contact configuration | SPDT |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
