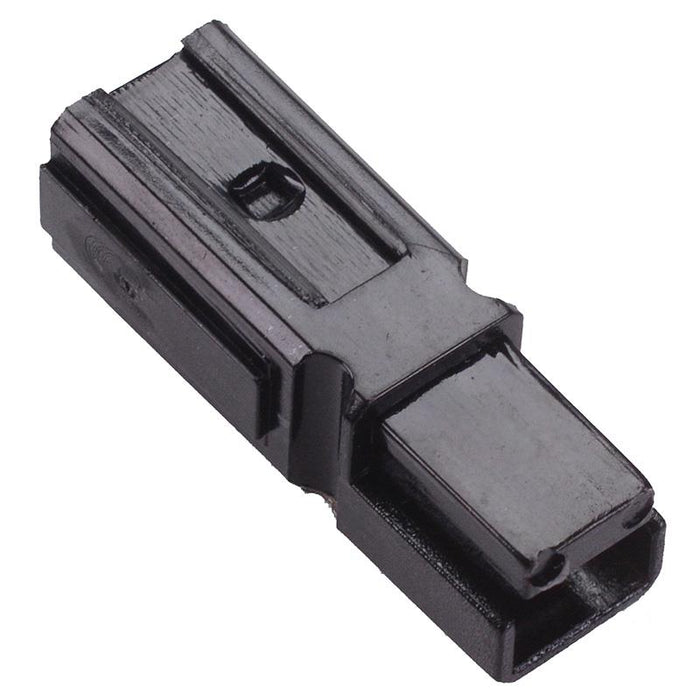

Black Power Connector Housing 30A 600V
SKU 483490
MPN: 483490
Back Order Availability: 30 Days
Availability:
101 in stock, ready to be shipped
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
Inc VAT
£0.69
-
£0.69
Current price
£0.69
Inc VAT
Black power connectors designed for easy connection and disconnection of high current cables such as batteries, welding etc. The connectors feature a compact and genderless design meaning they fit together by simplying flipping one around.
Low insertion force Genderless design Housings can be connected together into a block shape to create multiple poles Rating: 30A 600V Dimensions: 24.6 x 7.9 x 7.9mm
Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
Specification
| Back order lead time | 30 Days |
| Current rating | 30A |
| Housing material | Polycarbonate |
| Mounting type | Cable |
| Operating temperature | -20°C to +75°C |
| Termination method | Crimp |
| Voltage rating | 600V |
