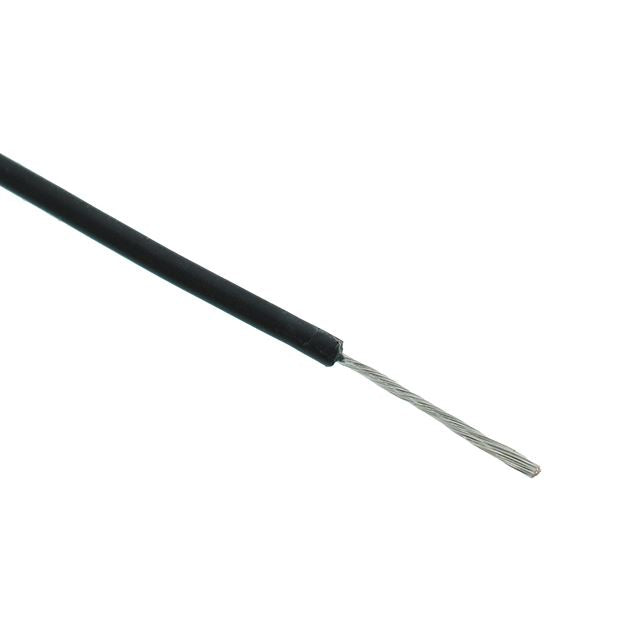

Black Silicone Lead Wire 20AWG 100/0.08mm (price per metre)
SKU 403011
MPN: 403011
Availability:
Out of stock
Sold out
Original price
£0.65
-
Original price
£0.65
Original price
£0.65
£0.65
-
£0.65
Current price
£0.65
Silicone insulated wire with a copper conductor suitable for a wide range of applications.
Wide temperature range Flexible and lightweight Rated voltage: 600V 100/0.08mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Conductor Cross Section | 0.5mm² |
| Conductor Diameter | 0.92mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 100/0.08mm |
| Current Rating | 13.9A |
| Insulation Material | Silicone |
| Insulation Thickness | 0.55mm |
| Operating Temperature | -60°C to 200°C |
| Overall Diameter | 1.8mm |
| Voltage Rating | 600V |
| Wire Gauge | 20AWG |
