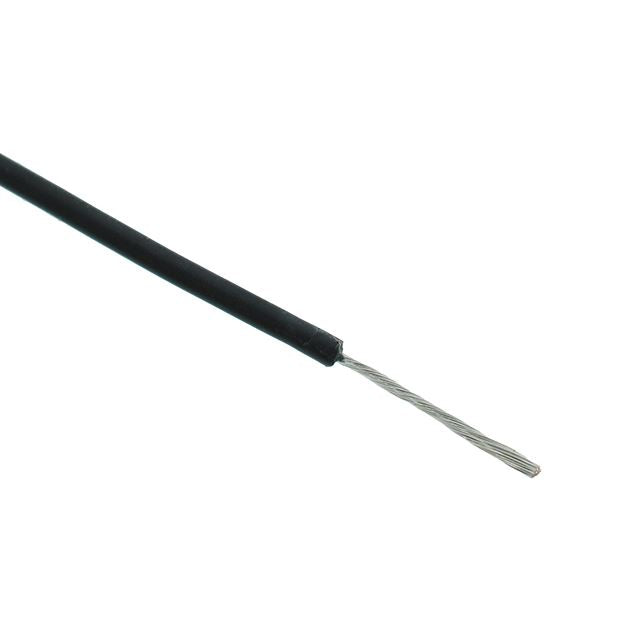

Black Silicone Lead Wire 24AWG 40/0.08mm (price per metre)
SKU 403019
MPN: 403019
Availability:
629 in stock, ready to be shipped
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
Inc VAT
£0.48
-
£0.48
Current price
£0.48
Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.
Wide temperature range Flexible and lightweight Rated voltage: 600V 40/0.08mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Colour | Black |
| Conductor cross section | 0.2mm² |
| Conductor diameter | 0.61mm |
| Conductor material | Tinned Copper |
| Conductor stranding | 40/0.08mm |
| Current rating | 5A |
| Insulation material | Silicone |
| Insulation thickness | 0.5mm |
| Operating temperature | -60°C to 200°C |
| Overall diameter | 1.6mm |
| Voltage rating | 600V |
| Wire gauge | 24AWG |
