Black Square Off-(On) Momentary 12mm Metal Push Button Switch IP65 SPST
SKU 490286
MPN: HBGQ12S-10/J/A/H
Availability:
94 in stock
Original price
£2.87
-
Original price
£2.87
Original price
£2.87
£2.87
-
£2.87
Current price
£2.87

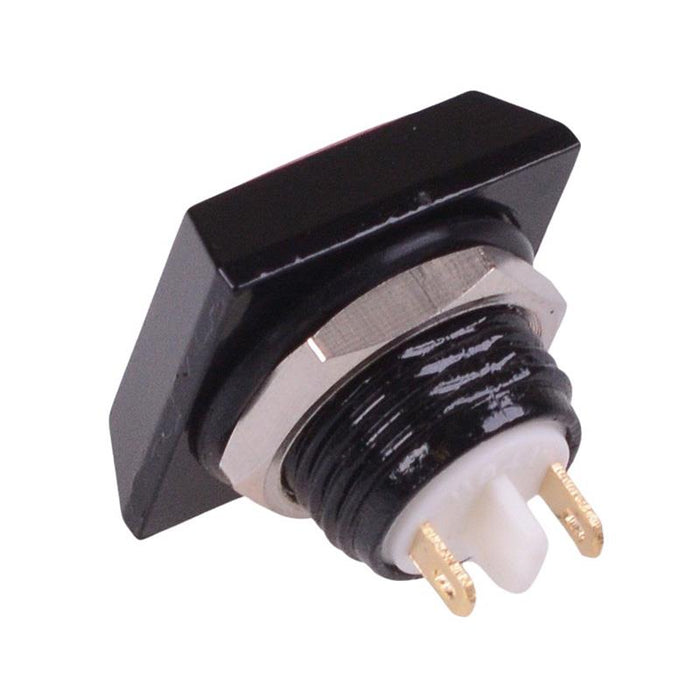

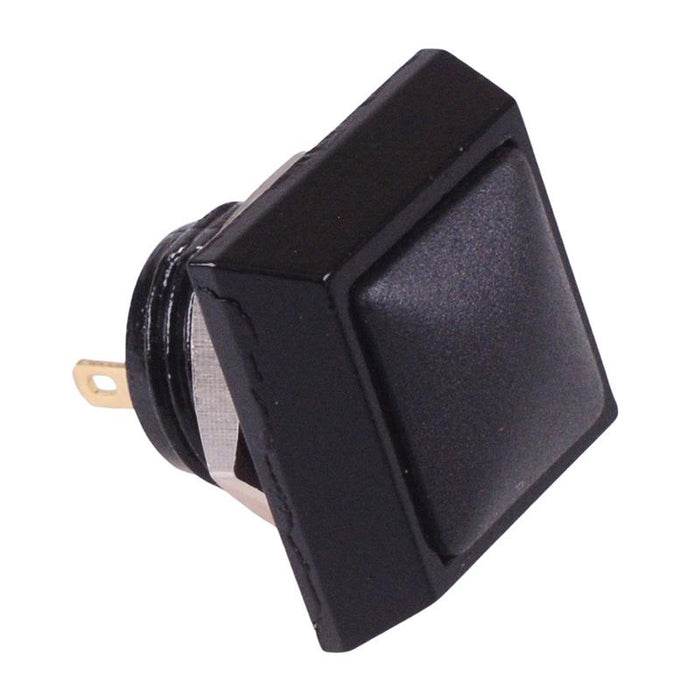

Black momentary push button switch featuring a square actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating Solder terminals Panel cut-out: 12mm Panel thickness: 5mm max Rating: 3A 250V Dimensions: 20.2 x 17.6 x 17.6mm (height x width x length)
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Colour | Black |
Contact Configuration | SPST |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Material | Zinc Alloy |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -25°C to +65°C |
Panel Cut Out | 12mm |
Panel Thickness | 5mm Max |
Protection Level | IP65 |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 250VAC |
