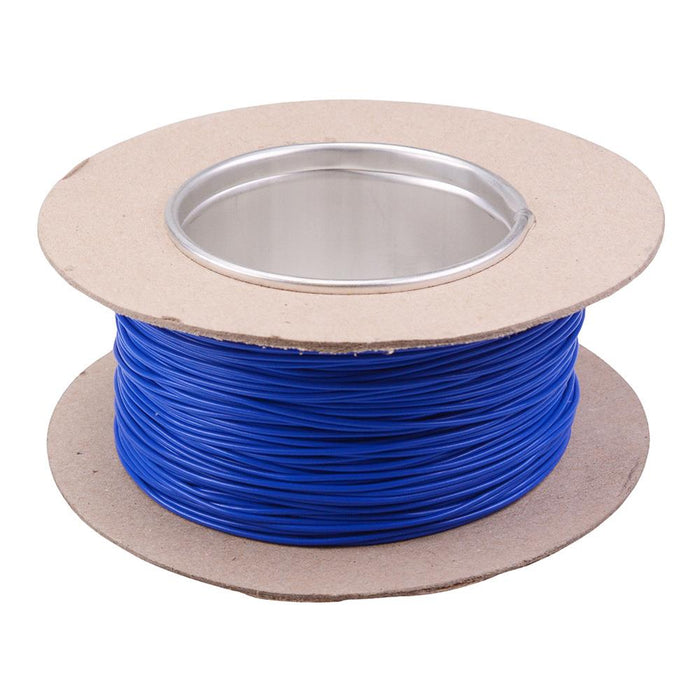

Blue 0.5mm² Thin Wall Cable 16/0.2mm 100M
SKU 490600
MPN: TW0.5B100
Availability:
9 in stock
Original price
£16.56
-
Original price
£16.56
Original price
£16.56
£16.56
-
£16.56
Current price
£16.56
Blue 0.5mm² thin wall single core cable featuring 16/0.2mm stranding and a copper conductor. The cable is insulated by lightweight PVC providing excellent weight savings over standard PVC cable. The insulation provides protection against moisture, oil, petrol, diesel and other corossive substances. The narrow insulation and high current capacity makes it suitable for a wide range of automotive, marine and other low voltage applications.
Reel size: 100m Stranding: 16/0.2mm Insulation material: thin wall PVC Conductor material: copper Overall diameter: 1.6mm Conductor cross section: 0.5mm² Maximum current: 11A Voltage rating: 60VDC Operating temperature: -40°C to 105°C Approvals: ISO6722, Class B
Specification
Back Order Lead Time | 7 Days |
Colour | Blue |
Conductor Cross Section | 0.5mm² |
Conductor Material | Copper |
Conductor Stranding | 16/0.2mm |
Current Rating | 11A |
Insulation Material | PVC |
Length | 100M |
MOQ | 1 |
Number of Cores | 1 |
Operating Temperature | -40°C to 105°C |
Overall Diameter | 1.6mm |
Voltage Rating | 60VDC |
