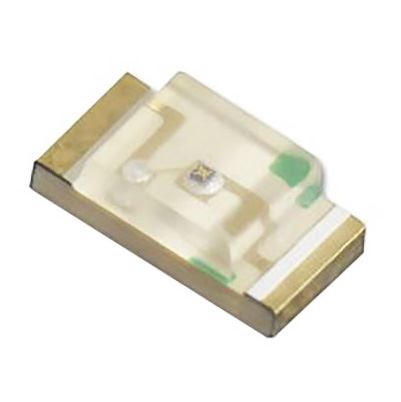

Blue 0402 SMD LED 90mcd

SKU 550596

MPN: OSB50402C1C

Availability:
1965 in stock
Original price £0.10 - Original price £0.10
Original price
£0.10 Inc VAT
£0.10 - £0.10
Current price £0.10 Inc VAT
High brightness surface mount LEDs housed in industry standard 0402 package featuring a single chip. The LEDs offer a wide viewing angle and are suitable for a range of backlighting and other lighting applications.

  • Package: 1.0 x 0.5 x 0.4mm
  • High brightness
  • Water clear package
  • Wide viewing angle
  • Low power consumption
  • Specification
    Back Order Lead Time 45 Days
    Colour Blue
    Forward Current 20mA
    Forward Voltage 3.2V
    Height 0.4mm
    Length 1.0mm
    Lens Colour Clear
    Luminous Intensity 90mcd
    MOQ 10
    Mounting Style Surface Mount
    Number of Pins 2
    Operating Temperature -40°C to +85°C
    Package 0402
    Packaging Cut-Tape
    Power Dissipation 72mW
    Viewing Angle 120°
    Wavelength 465nm
    Width 0.5mm
