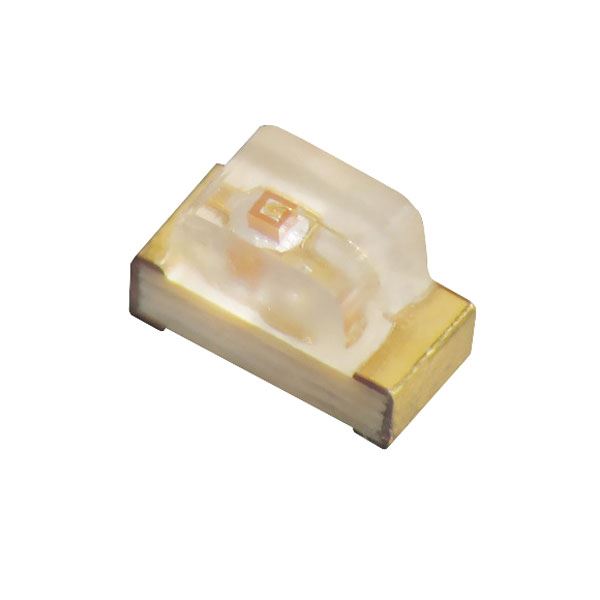

Blue 1206 SMD LED 150mcd 120°

SKU 311508

MPN: TY-Y1206BL1

Availability:
4045 in stock
Original price £0.24 - Original price £0.24
Original price
£0.24 Inc VAT
£0.24 - £0.24
Current price £0.24 Inc VAT
High brightness surface mount LEDs housed in industry standard 1206 package featuring a single chip. The LEDs offer a wide viewing angle and are suitable for a range of backlighting and other lighting applications.

  • Package: 3.2 x 1.6 x 1.1mm
  • High brightness
  • Water clear package
  • Wide viewing angle
  • Low power consumption
  • Specification
    Back order lead time 45 Days
    Colour Blue
    Forward current 30mA
    Forward voltage 2.8V
    Height 1.1mm
    Length 3.2mm
    Lens colour Clear
    Luminous intensity 150mcd
    Moq 10
    Mounting style Surface Mount
    Number of pins 2
    Operating temperature -40°C to +85°C
    Package 1206
    Packaging Cut-Tape
    Power dissipation 135mW
    Viewing angle 120°
    Wavelength 467nm
    Width 1.6mm
