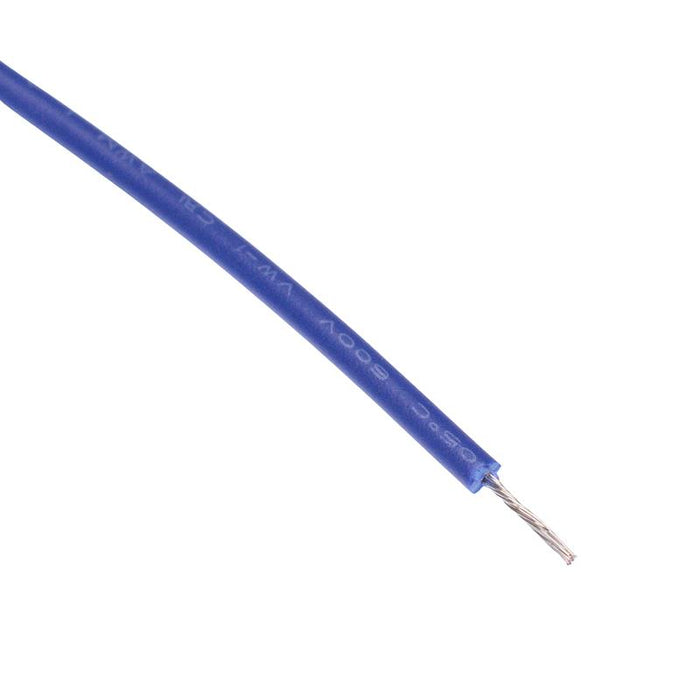

Blue UL1015 22AWG 17/0.16mm Tinned Copper Stranded Wire (price per metre)
SKU 404024
MPN: 404024
Availability:
Out of stock
Sold out
Original price
£0.54
-
Original price
£0.54
Original price
£0.54
£0.54
£0.54
-
£0.54
Current price
£0.54
Blue 22AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.4mm Wide temperature range Tinned copper conductor Rated voltage: 600V 17/0.16mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Conductor Cross Section | 0.32mm² |
| Conductor Diameter | 0.76mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 17/0.16mm |
| Current Rating | 6A |
| Insulation Material | PVC |
| Insulation Thickness | 0.79mm |
| Operating Temperature | -30°C to 105°C |
| Overall Diameter | 2.4mm |
| Voltage Rating | 600V |
| Wire Gauge | 22AWG |
