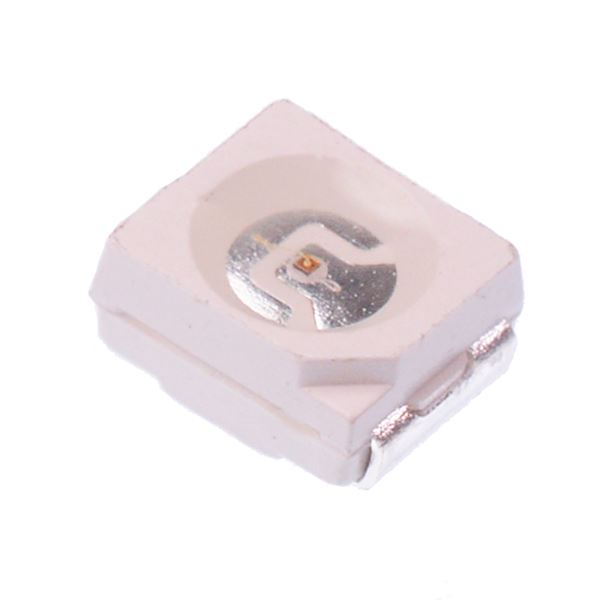

Blue 3528 PLCC-2 SMD Water Clear LED 400mcd 120°
by Luckylight
SKU 484860
MPN: R3528BC-B4-1B
Availability:
3890 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
£0.12
-
£0.12
Current price
£0.12
Blue surface mount LED housed in a 3528 package with 600mcd luminous intensity suitable for a wide range of applications including automotive, backlighting and indication.
3528 PLCC-2 package Luminous intensity: 400mcd 120° viewing angle Wavelength: 470nm Forward voltage: 3.2V Forward current: 25mA Water clear lens UV resistant Supplied on tape packaging Dimensions: 3.5 x 2.8 x 1.9mm
Specification
| Back Order Lead Time | 40 Days |
| Colour | Blue |
| Forward Current | 25mA |
| Forward Voltage | 3.2V |
| Height | 1.9mm |
| Length | 3.5mm |
| Lens Colour | Clear |
| Luminous Intensity | 400mcd |
| MOQ | 10 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3528 |
| Packaging | Cut Tape |
| Power Dissipation | 90mW |
| Viewing Angle | 120° |
| Wavelength | 470nm |
| Width | 2.8mm |
