Blue 3mm Concave Diffused LED 220mcd 120°
by OptoSupply
SKU 484944
MPN: OSB5SA3PC4A
Availability:
129 in stock
Original price
£0.33
-
Original price
£0.33
Original price
£0.33
£0.33
£0.33
-
£0.33
Current price
£0.33

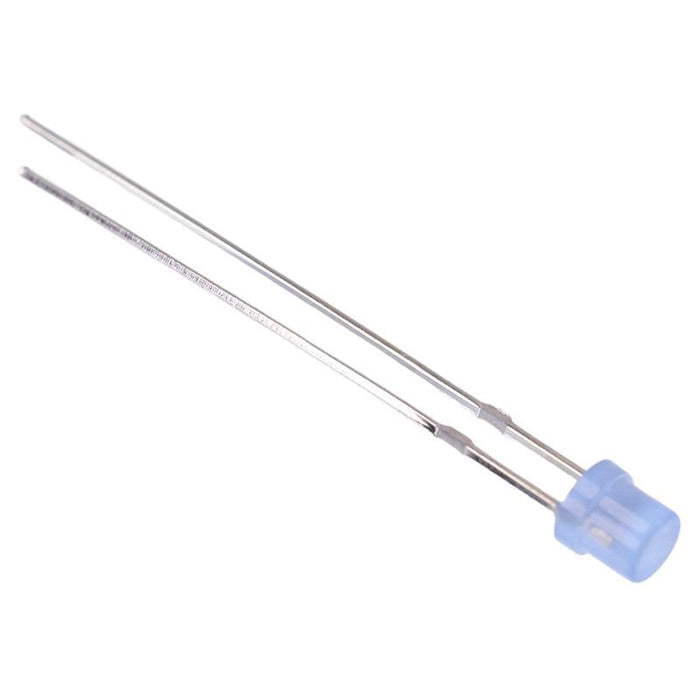

Blue 3mm concave LED featuring a colour diffused package and 220mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 220mcd Wavelength: 470nm Viewing angle: 120° Forward voltage: 3.1V Forward current: 30mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 5 Days |
| Colour | Blue |
| Diameter | 3mm |
| Forward Current | 30mA |
| Forward Voltage | 3.1V |
| Lens Colour | Blue |
| Lens Shape | Concave |
| Luminous Intensity | 220mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +85°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 108mW |
| Viewing Angle | 120° |
| Wavelength | 470nm |
