Blue 5mm Multi-Voltage (3-15V) LED Kit - Box of 50
by OptoSupply
SKU 486694
MPN: OKLEDT5050B5V
Availability:
Out of stock
Sold out
Original price
£6.88
-
Original price
£6.88
Original price
£6.88
Inc VAT
£6.88
-
£6.88
Current price
£6.88
Inc VAT

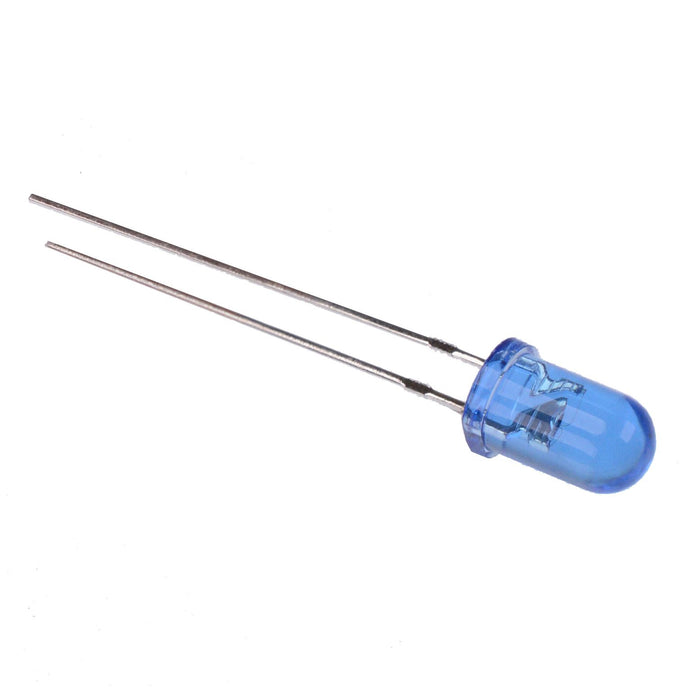

Blue 5mm universal LED lamps featuring a blue transparent lens complete in a handy box. The LEDs feature a built-in resistor allowing them to be used with a 3-15V input voltage range, not only does this save on cost but also space and time by not having to install an additional resistor. The LEDs are widely used for indication applications and with microcontrollers including Arduino, Raspberry Pi etc.
Box of 50 LEDs Blue transparent lens 5mm package with 2.54mm lead pitch Input voltage: 3-15VDC Built-in resistor Viewing angle: 30deg Wavelength: 465-475nm Luminous intensity: 2180mcd @ 9V
Specification
| Back order lead time | 45 Days |
| Colour | Blue |
| Diameter | 5mm |
| Forward current | 7.5mA |
| Forward voltage | 3-15V |
| Lens colour | Blue |
| Lens shape | Round |
| Luminous intensity | 2180mcd |
| Mode | Constant |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Operating temperature | -30°C to 85°C |
| Package | 5mm |
| Packaging | Box |
| Viewing angle | 30° |
| Wavelength | 465-475nm |
