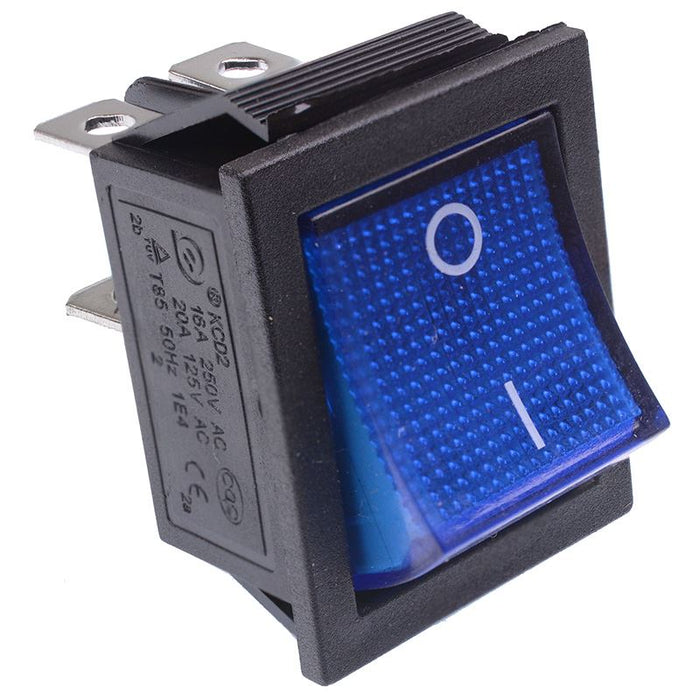

Blue illuminated On-Off Large Rectangle Rocker Switch DPST 12V
SKU 131004
MPN: 131004
Availability:
235 in stock
Original price
£0.96
-
Original price
£0.96
Original price
£0.96
£0.96
£0.96
-
£0.96
Current price
£0.96
illuminated rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.
On-off action DPST contacts 12V illumination 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Blue |
| Contact Configuration | DPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
