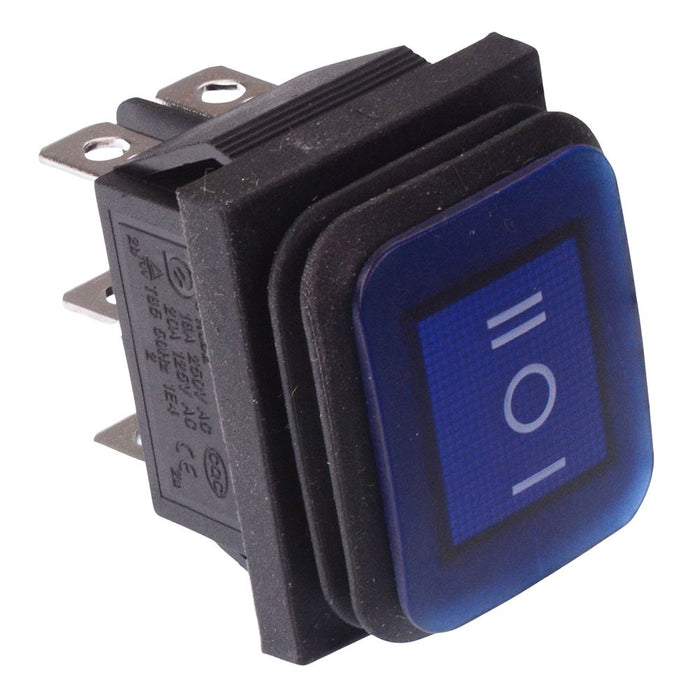

Blue Illuminated On-Off-On Waterproof Rocker Switch 20A DPDT IP67
SKU 486904
MPN: 486904
Back Order Availability: 40 Days
Availability:
200 in stock, ready to be shipped
Original price
£1.75
-
Original price
£1.75
Original price
£1.75
Inc VAT
£1.75
-
£1.75
Current price
£1.75
Inc VAT
Rectangular On-Off-On waterproof rocker switch featuring an illuminated blue button and quick connect terminals. The switch features IP67 protection and is protected from dust and water ingress.
On-Off-On action 20A 250VAC Rating Red neon illumination DPDT Contacts 28.5 x 21.5mm panel cut-out 6.3mm quick connect terminals
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Blue |
| Contact configuration | DPDT |
| Contact rating | 16A 250VAC, 20A 125VAC |
| Current rating | 20A @ 125VAC |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 230VAC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 28.5 x 21.5mm |
| Protection level | IP67 |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
