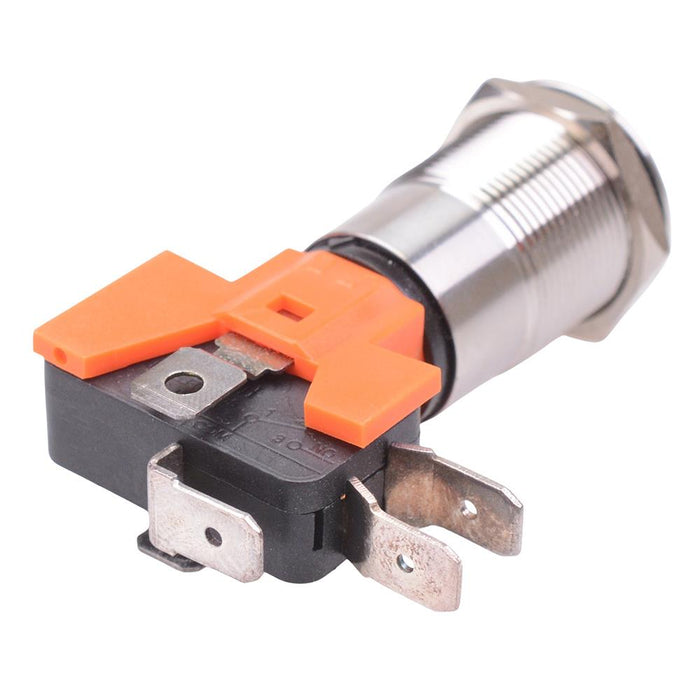

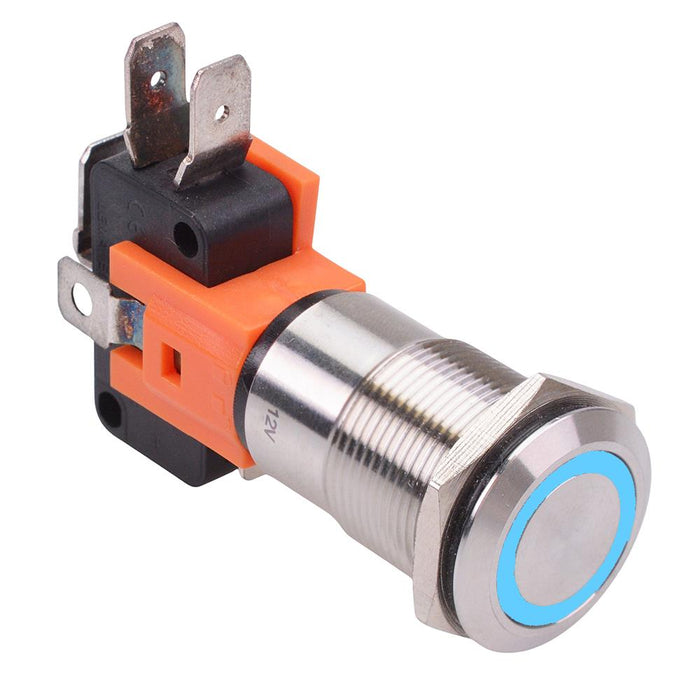

Blue LED 19mm Momentary Vandal Resistant Push Switch SPDT 21A 12V
by Langir
SKU 482239
MPN: L19BFM321SRB12V
Availability:
41 in stock
Original price
£17.26
-
Original price
£17.26
Original price
£17.26
Inc VAT
£17.26
-
£17.26
Current price
£17.26
Inc VAT
Vandal resistant momentary push button switch featuring a blue LED and NO/NC contacts. The switch features IP67 protection and is suitable for high current 12V applications.
Momentary action Blue LED 12V illumination voltage IP67 protection rating 19mm panel cut-out diameter NO/NC contacts Solder terminals Rating: 21A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | Blue |
| Contact configuration | SPDT |
| Contact rating | 21A 250VAC |
| Current rating | 21A |
| Electrical life | 50,000+ Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19mm |
| Protection level | IP65 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
