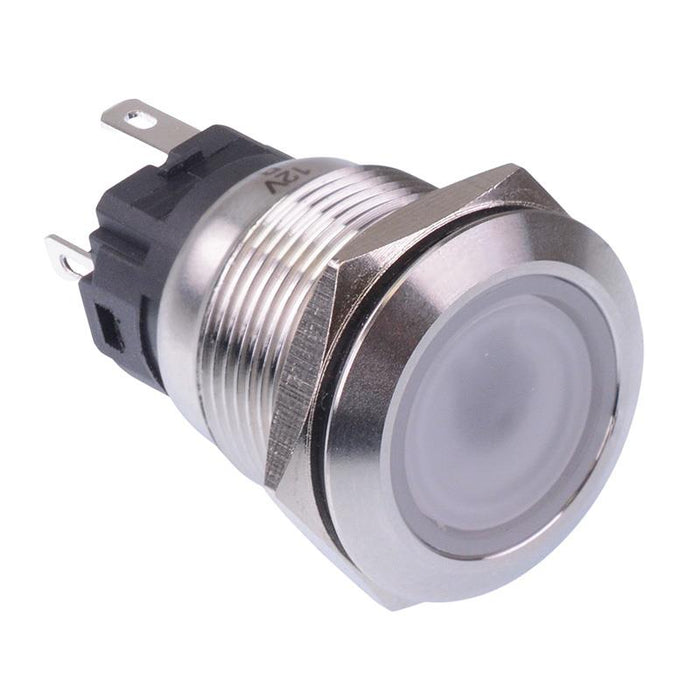

Blue LED Latching 19mm Vandal Push Button Switch SPDT 12V
by Langir
SKU 486512
MPN: L19TFZSRB12V
Availability:
Out of stock
Sold out
Original price
£15.34
-
Original price
£15.34
Original price
£15.34
Inc VAT
£15.34
-
£15.34
Current price
£15.34
Inc VAT
Latching vandal resistant push button switch featuring a blue LED requiring 12V supply voltage and 19mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Latching action Blue 12V LED Panel cut-out: 19mm Panel thickness: 1-10mm Current rating: 3A Protection level: IP65 Contacts: NO/NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 37 x 22mm (height x diameter)
Specification
Actuation | Latching |
Back Order Lead Time | 45 Days |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 30,000 Cycles |
Illuminated | Yes |
Illumination Colour | Blue |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Force | 5N |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 19mm |
Panel Thickness | 1-10mm |
Protection Level | IP65 |
Switch Operation | On-On |
