Blue LED On-(On) Momentary 19mm Vandal Resistant Push Switch NO/NC
SKU 481606
MPN: 481606
Availability:
202 in stock
Original price
£6.44
-
Original price
£6.44
Original price
£6.44
Inc VAT
£6.44
-
£6.44
Current price
£6.44
Inc VAT

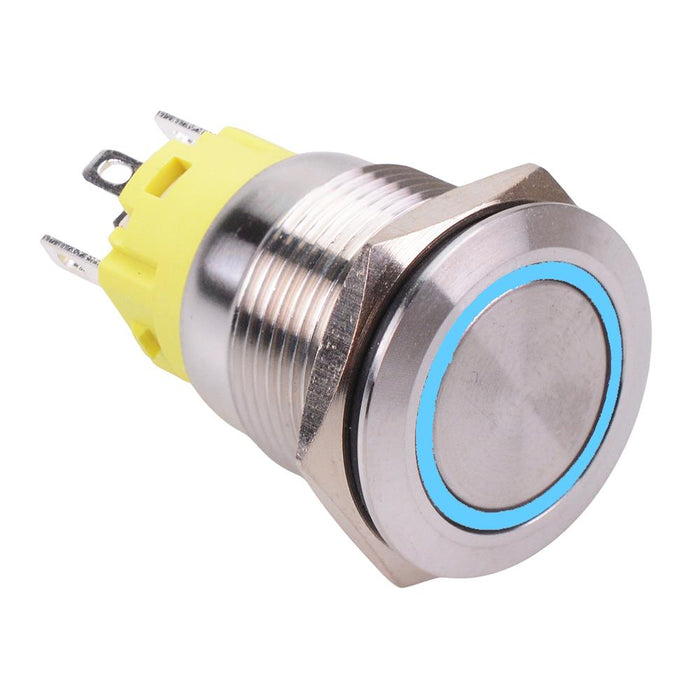

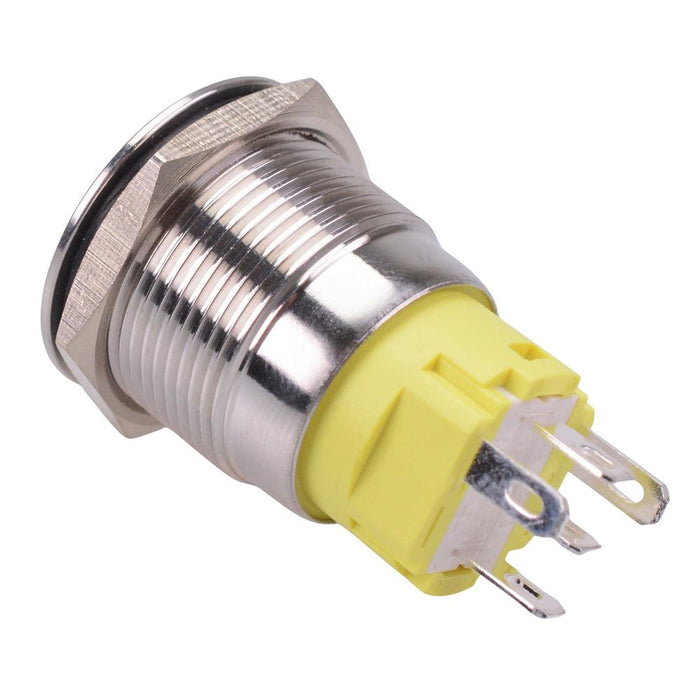

Vandal resistant push button switch manufactured from stainless steel, featuring a blue LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Momentary On-(On) action Blue LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Blue |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
