Blue Off-(On) Momentary 12mm Waterproof Push Button Switch IP65 SPST
SKU 490268
MPN: HBGQ12B-10/J/PA/B
Availability:
40 in stock
Original price
£3.00
-
Original price
£3.00
Original price
£3.00
£3.00
£3.00
-
£3.00
Current price
£3.00

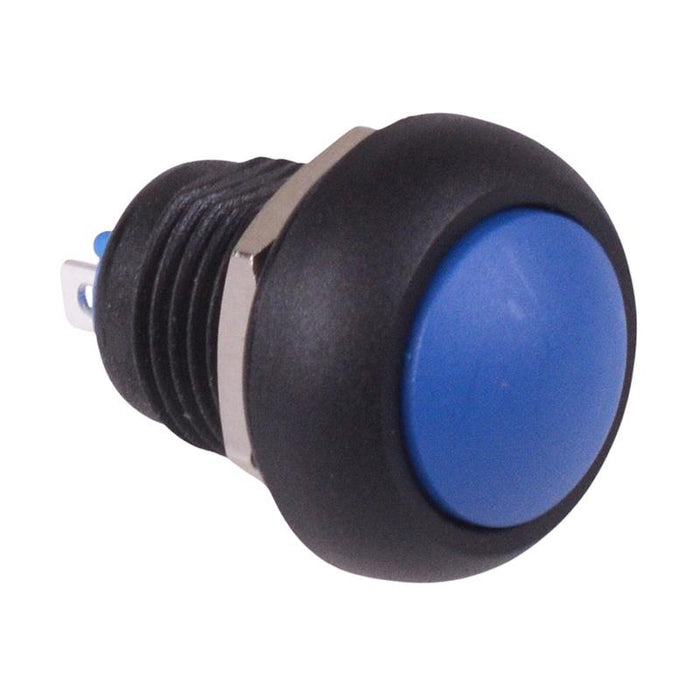

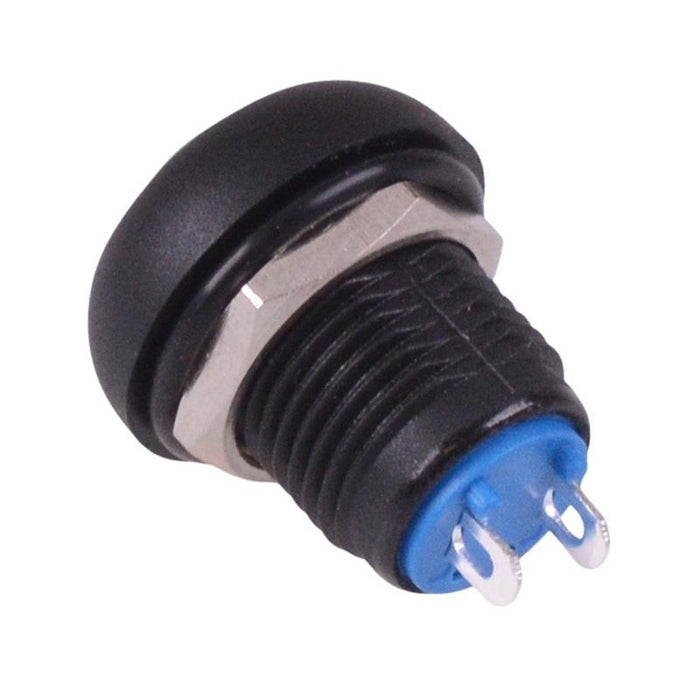

Blue momentary push button switch featuring a round actuator and normally open contacts. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating 2.8x0.5mm quick connect terminals Panel cut-out: 12mm Panel thickness: 6mm max Rating: 2A 250V Dimensions: 24.75 x 18mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 2A 250VAC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
