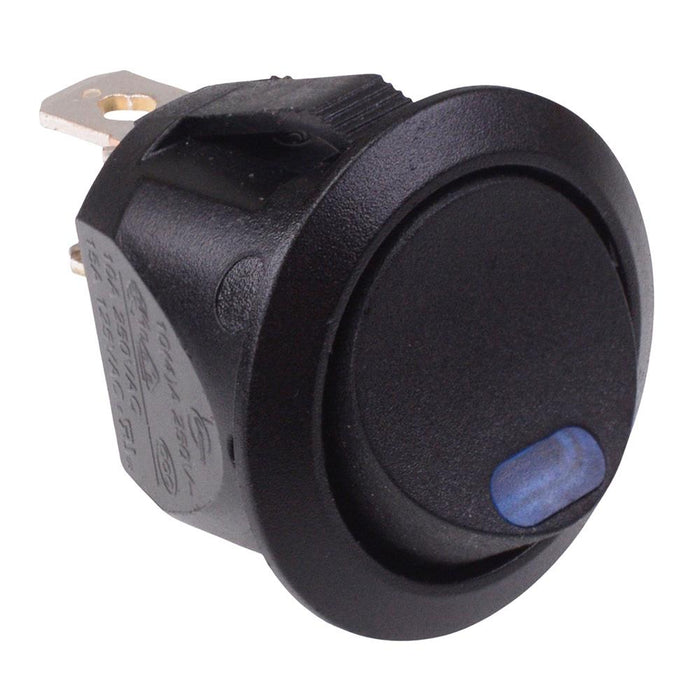

Blue On-Off 12V illuminated Round Rocker Switch SPST 10A
SKU 487430
MPN: RC95KKFETLLFB(12V)
Availability:
447 in stock
Original price
£1.17
-
Original price
£1.17
Original price
£1.17
£1.17
£1.17
-
£1.17
Current price
£1.17
Blue On-Off illuminated rocker switch featuring a 20.2mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts Blue 12VDC LED On-Off function Rating: 10A 250VAC, 15A 125VAC Panel cut-out: 20.2mm Diameter: 23mm 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 6A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.8-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
