Blue On-(On) 25mm Black Vandal Momentary Push Button Switch DPDT 12V

SKU 486524

MPN: 486524

Availability:
Out of stock
Sold out
Original price £9.42 - Original price £9.42
Original price
£9.42 Inc VAT
£9.42 - £9.42
Current price £9.42 Inc VAT

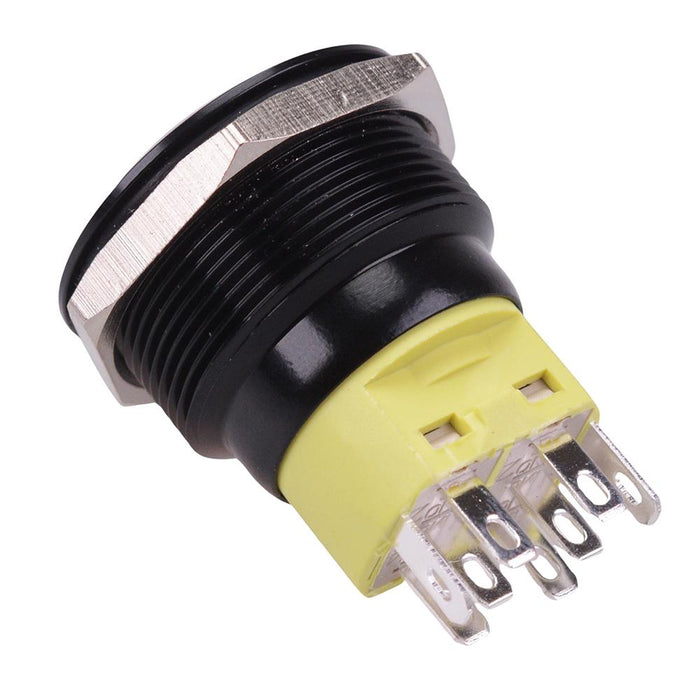

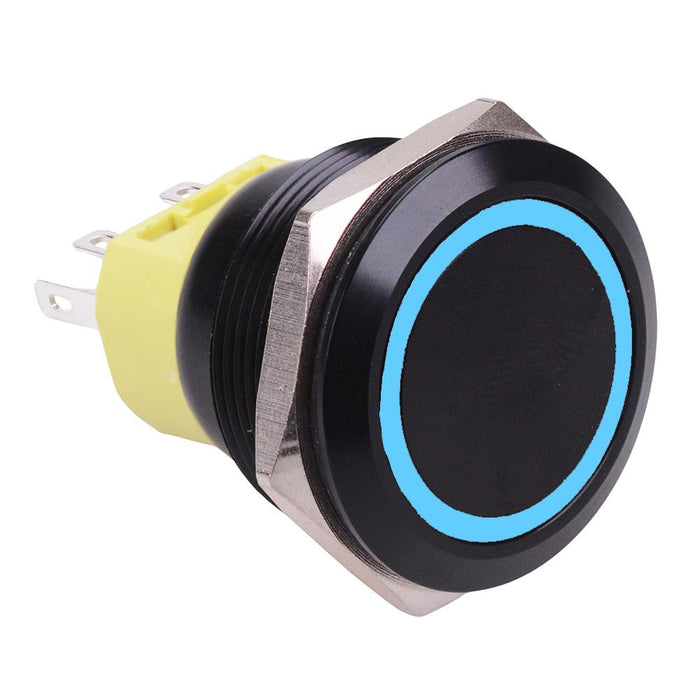

Momentary vandal resistant 25mm push button switch featuring a blue 12V LED and DPDT contacts. The switch is manufactured from zinc and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Momentary action
  • Blue LED
  • 12V illumination voltage
  • IP67 protection rating
  • 25mm panel cut-out diameter
  • 2NO/2NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.6 x 28mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material Zinc
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 25mm
    Protection level IP67
    Switch operation On-(On)
