Blue On-(On) Momentary 12V Push Button Switch SPDT
SKU 485006
MPN: 485006
Availability:
10 in stock
Original price
£6.95
-
Original price
£6.95
Original price
£6.95
Inc VAT
£6.95
-
£6.95
Current price
£6.95
Inc VAT

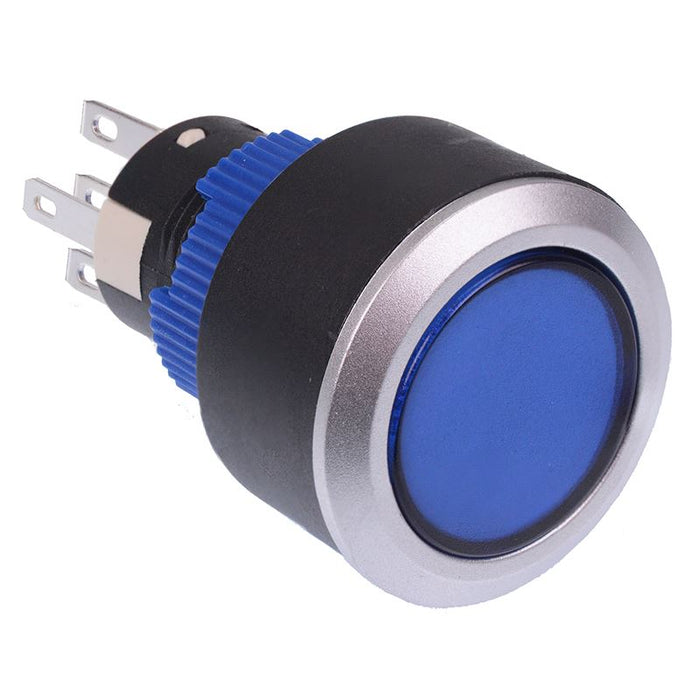

Blue On-(On) momentary push button switch featuring SPDT contacts and LED illumination. The switch features a silver bezel and is suitable for panel mount applications requiring a 22mm diameter switch.
Blue LED illumination voltage: 12V Panel cut-out diameter: 22mm SPDT contacts IP65 protection level Rating: 3A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Contact configuration | 1NO-1NC |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12V |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22mm |
| Panel thickness | 6mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
