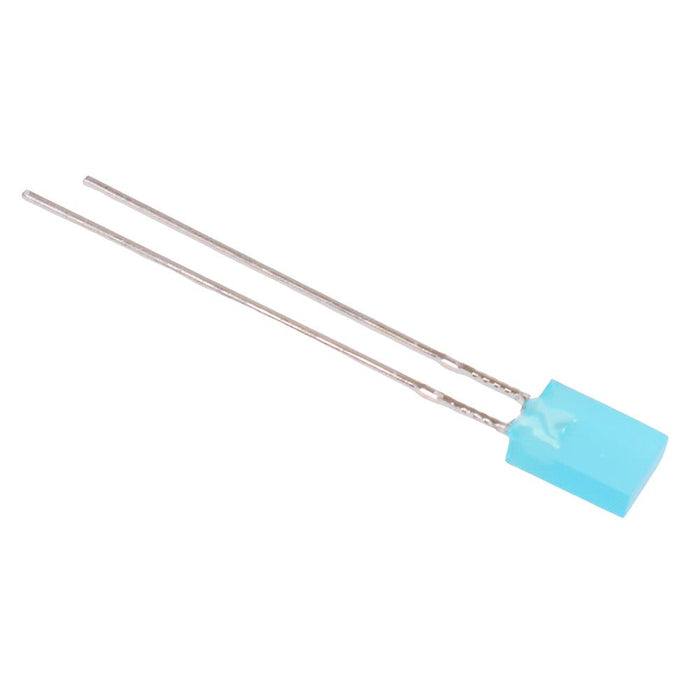

Blue Rectangle 2x5mm Diffused LED 270mcd 130°
by Luckylight
SKU 491949
MPN: 254BD1F-B4-2B
Availability:
4964 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.13
£0.13
-
£0.13
Current price
£0.13
Blue rectangular 5mm LED featuring a diffused package and wide viewing angle suitable for general purpose applications including indication, backlighting and signage.
Suitable for through-hole mounting Cathode identified as the shorter lead Colour diffused Lens Excellent weather resistance Long lifespan Wavelength: 470nm Forward voltage: 3.0V Forward current: 25mA Luminous intensity: 270mcd Viewing angle: 130°
Specification
| Back Order Lead Time | 60 Days |
| Colour | Blue |
| Forward Current | 25mA |
| Forward Voltage | 3.0V |
| Lens Colour | Blue |
| Lens Shape | Rectangle |
| Luminous Intensity | 270mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 2 x 5mm |
| Packaging | Bulk |
| Power Dissipation | 85mW |
| Viewing Angle | 130° |
| Wavelength | 470nm |
