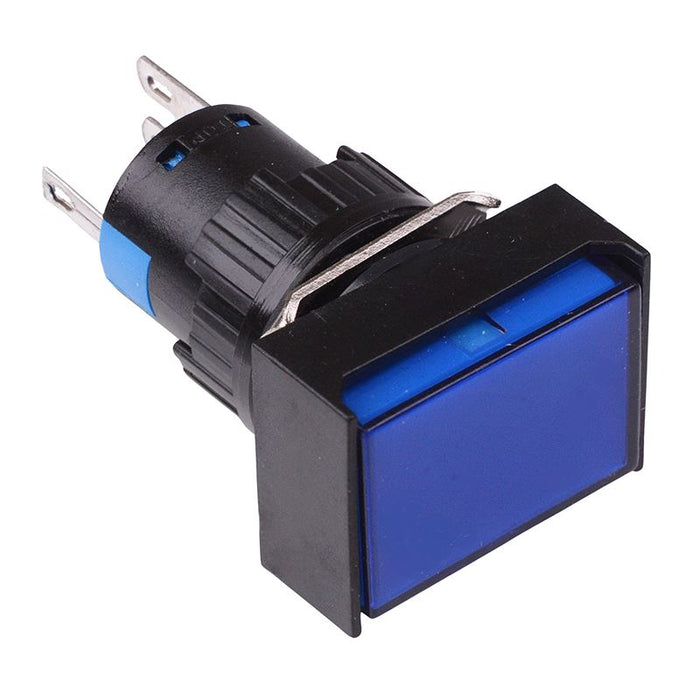

Blue Rectangle Momentary 16mm Push Button Switch NO/NC 230V
SKU 486768
MPN: 486768
Availability:
48 in stock
Original price
£2.78
-
Original price
£2.78
Original price
£2.78
Inc VAT
£2.78
-
£2.78
Current price
£2.78
Inc VAT
Blue momentary push button switch featuring a rectangle illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, domestic, appliances etc.
Blue 230V illumination NO/NC contacts Solder terminals Maximum voltage: 250VAC/DC Maximum current: 5A Panel cut-out: 16mm Protection level: IP65 Button size: 15.4 x 21.4mm Dimensions: 40.5 x 28 x 18mm
Specification
Actuation | Momentary |
Back order lead time | 30 Days |
Colour | Blue |
Contact configuration | SPST |
Contact material | Silver Plated |
Contact rating | 5A 250VAC/DC |
Current rating | 5A |
Electrical life | 100,000 Cycles |
Illuminated | Yes |
Illumination colour | Blue |
Illumination voltage | 230VAC |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -25°C to +55°C |
Panel cut out | 16mm |
Protection level | IP65 |
Switch operation | Off-(On) |
Terminal type | Solder |
Voltage rating | 250VAC |
