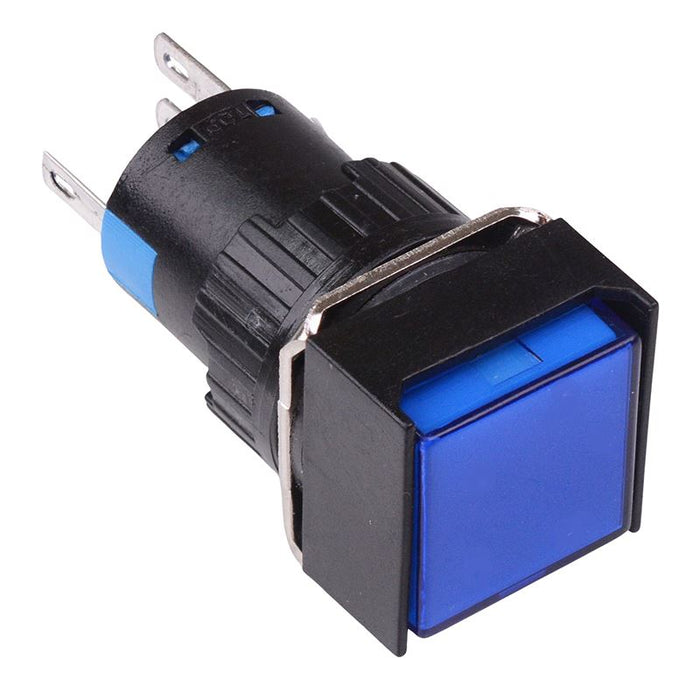

Blue Square Latching 16mm Push Button Switch NO/NC 230V
SKU 486758
MPN: 486758
Availability:
44 in stock
Original price
£3.12
-
Original price
£3.12
Original price
£3.12
£3.12
-
£3.12
Current price
£3.12
Blue latching push button switch featuring a square illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, domestic, appliances etc.
Blue 230V illumination NO/NC contacts Solder terminals Maximum voltage: 250VAC/DC Maximum current: 5A Panel cut-out: 16mm Protection level: IP65 Button size: 15.4 x 15.4mm Dimensions: 40.5 x 18 x 18mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 5A 250VAC/DC |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 230VAC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
