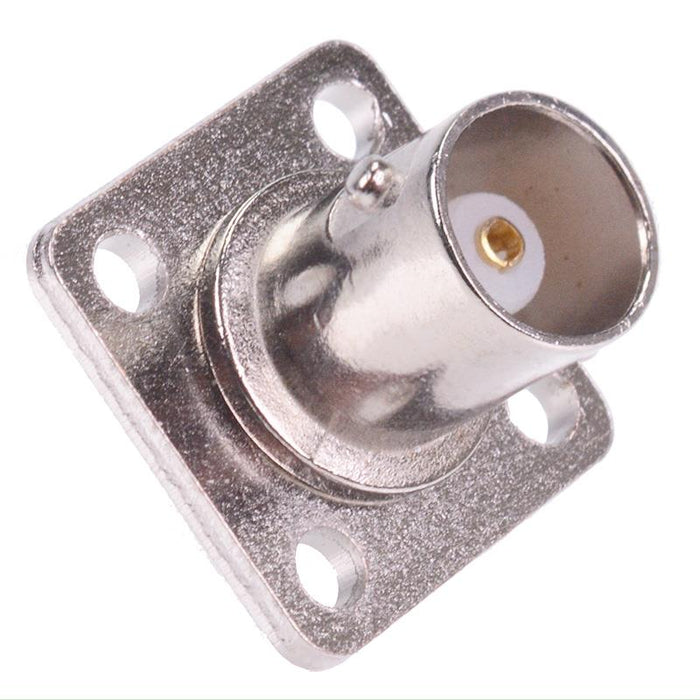

BNC Square Panel Mount Socket 50Ω

BNC Square Panel Mount Socket 50Ω

by Switch Electronics
SKU 483280

MPN: 483280

Availability:
300 in stock
£0.98 - £0.98
£0.98
£0.98
£0.98 - £0.98
£0.98
Flanged BNC bulkhead socket featuring a straight design suitable for panel mount applications.

  • 50Ω impedance
  • Voltage rating: 500V
  • Frequency range: 0-4GHz
  • Dielectric strength: 1500Vrms
  • Insulator material: TFE
  • Body material: nickel plated brass
  • Gold contact plating
    • Specification
    Back Order Lead Time 150
    Body Style Straight
    Connector Type BNC
    Contact Material Gold Plated
    Frequency 0-4GHz
    Gender Female
    Impedance 50Ω
    MOQ 1
    Termination Method Solder
    VOltage Rating 500V
