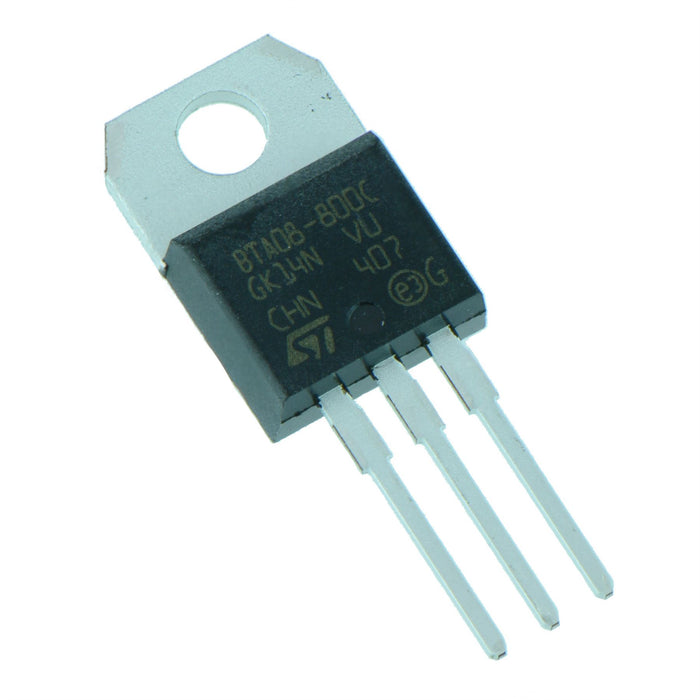

BTA08-800CRG Isolated Triac 8A 800V
by ST
SKU 551840
MPN: BTA08-800CRG
Availability:
174 in stock
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
Inc VAT
£1.03
-
£1.03
Current price
£1.03
Inc VAT
The BTA08 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, or for phase control operation in light dimmers, motor speed controllers etc. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500VRMS) complying with UL standards.
Type: Standard Peak Off-State Voltage: 800V Peak On-State Current: 8A Gate Trigger Current: 25mA Gate Trigger Voltage: 1.3V
Specification
| Back order lead time | 5 Days |
| Gate trigger current | 25mA |
| Hold current | 25mA |
| Mounting type | Through Hole |
| Off state voltage | 800V |
| On state current | 8A |
| Package | TO-220AB |
| Single or array | Single |
| Surge current | 80A |
| Type | Standard |
