C14 IEC Fused and Switched Inlet Panel Mount 10A

SKU 489596

MPN: RE-C-AS-303

Availability:
122 in stock
Original price £1.98 - Original price £1.98
Original price
£1.98
£1.98 - £1.98
Current price £1.98

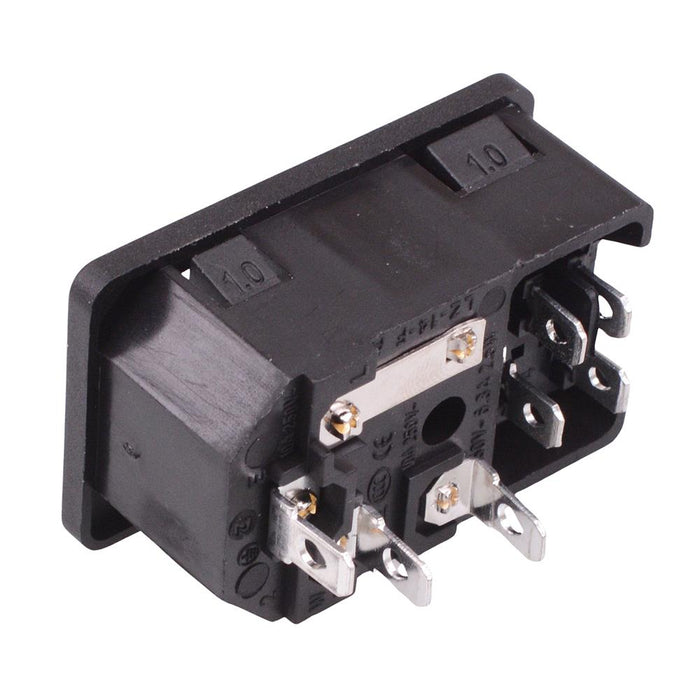

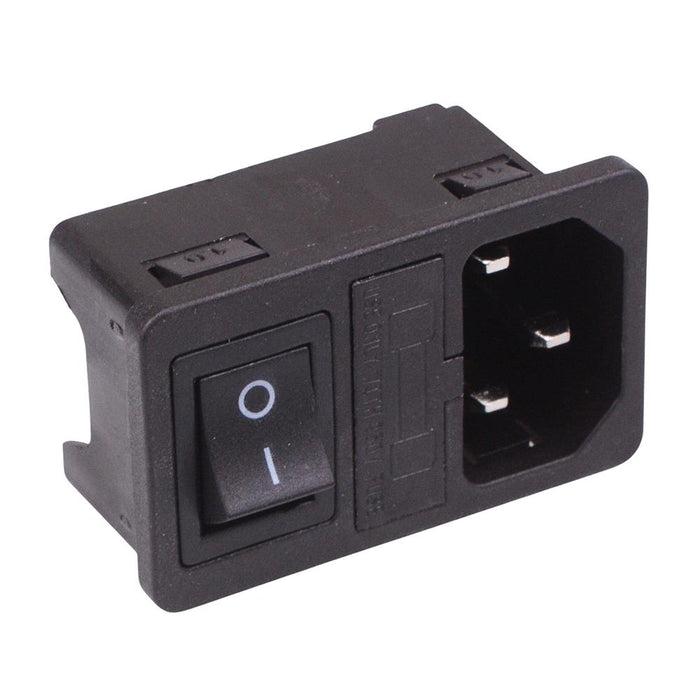

Fused and switched 3 pole C14 IEC chassis Inlet connector with quick-connect terminals. The inlet is suitable for a wide range of power applications requiring a fused and switched connection.

  • Panel cut-out: 46.8 x 27.8mm
  • Rating: 10A 250VAC
  • 4.8mm x 0.8mm quick connect terminals
  • 5 x 20mm fuse size
  • Includes rocker switch
  • Nickel plated brass contacts
  • PA66 housing
  • Dimensions: 50 x 30 x 30.5mm (length x width x depth)
  • Specification
    Back Order Lead Time 120 Days
    Colour Black
    Contact Material Nickel Plated Brass
    Current Rating 10A
    Housing Material PA66
    MOQ 1
    Mounting Type Panel
    Operating Temperature -45°C to +105°C
    Panel Cut Out 46.8 x 27.8mm
    Termination Method Tab
    Type C14
    Voltage Rating 250VAC
