C14 IEC Fused Inlet Socket 10A
SKU 485604
MPN: SE-AS-301-12
Availability:
70 in stock
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
£1.03
£1.03
-
£1.03
Current price
£1.03

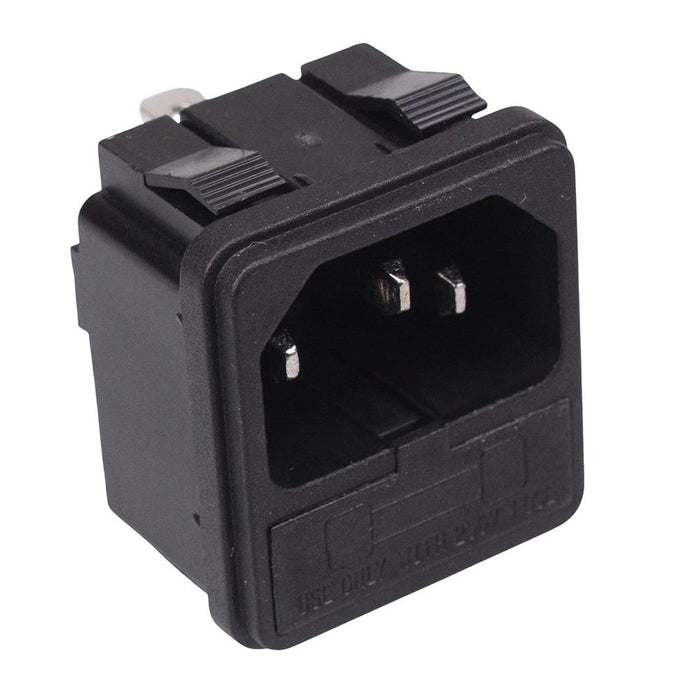

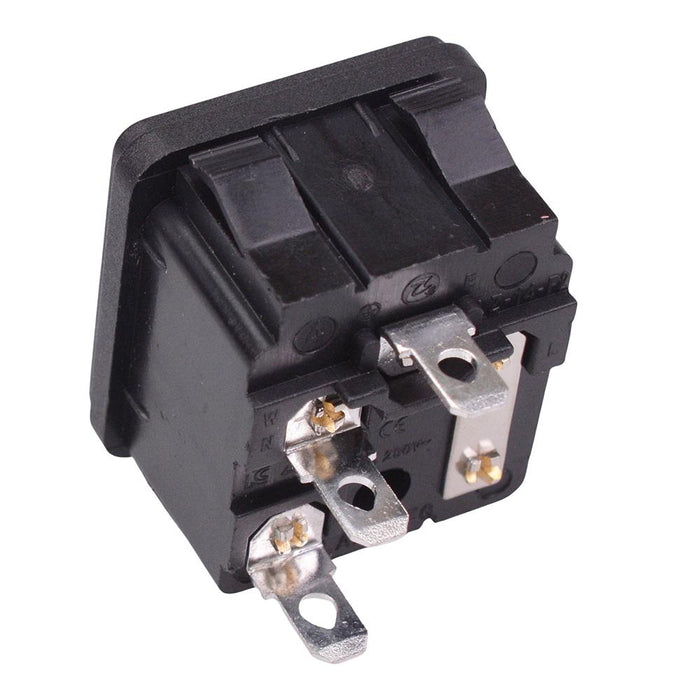

Fused 3 pole C14 IEC chassis Inlet connector featuring quick connect 4.8mm terminals. The inlet features 10A 250VAC rating and is suitable for a wide range of power applications.
Panel cut-out: 27 x 31.5mm Rating: 10A 250VAC 4.8mm x 0.8mm faston terminals 5x20mm fuse holder Nickel plated brass contacts Dimensions: 30 x 33 x 28.5mm (length x height x depth)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 31.6 x 27.8mm |
| Termination Method | Quick Connect |
| Type | C14 |
| Voltage Rating | 250VAC |
