C14 IEC Fused Inlet Socket Chassis Mount 10A
SKU 489597
MPN: SE-AS-301-11
Availability:
102 in stock
Original price
£1.14
-
Original price
£1.14
Original price
£1.14
£1.14
-
£1.14
Current price
£1.14

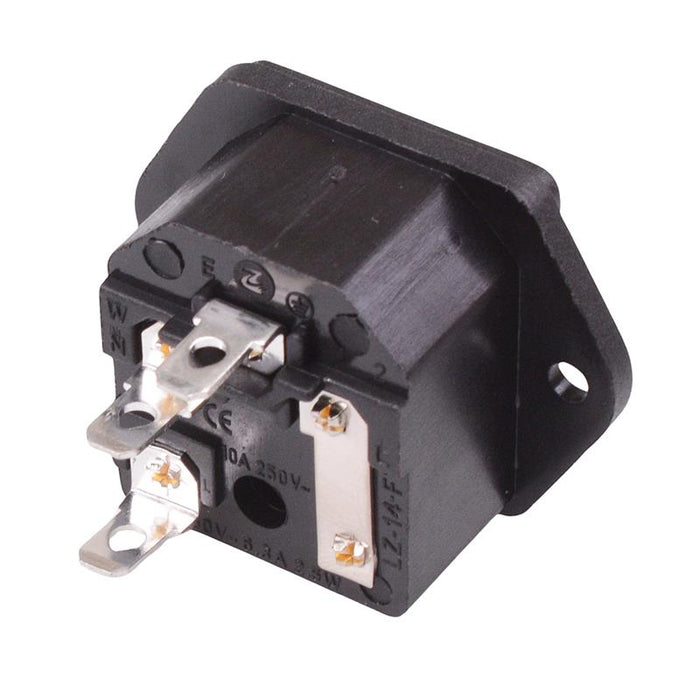

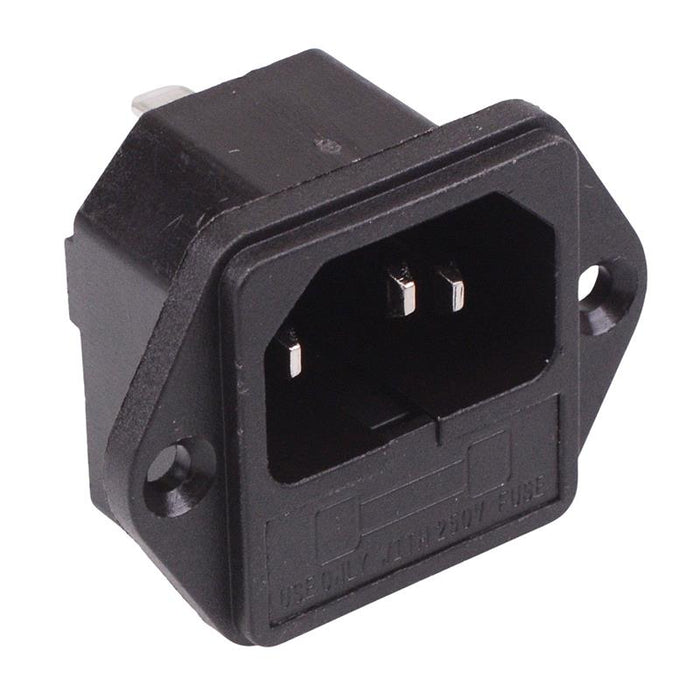

Fused 3 pole C14 IEC panel mount Inlet connector with quick-connect terminals. The inlet is suitable for a wide range of power applications requiring a fused connection.
Panel cut-out: 31.5 x 27.5mm Mounting holes pitch: 36.0mm Rating: 10A 250VAC 4.8mm x 0.8mm quick connect terminals 5x20mm fuse size Nickel plated brass contacts PA66 housing
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Chassis |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 31.5 x 27.5mm |
| Termination Method | Quick Connect |
| Type | C14 |
| Voltage Rating | 250VAC |
