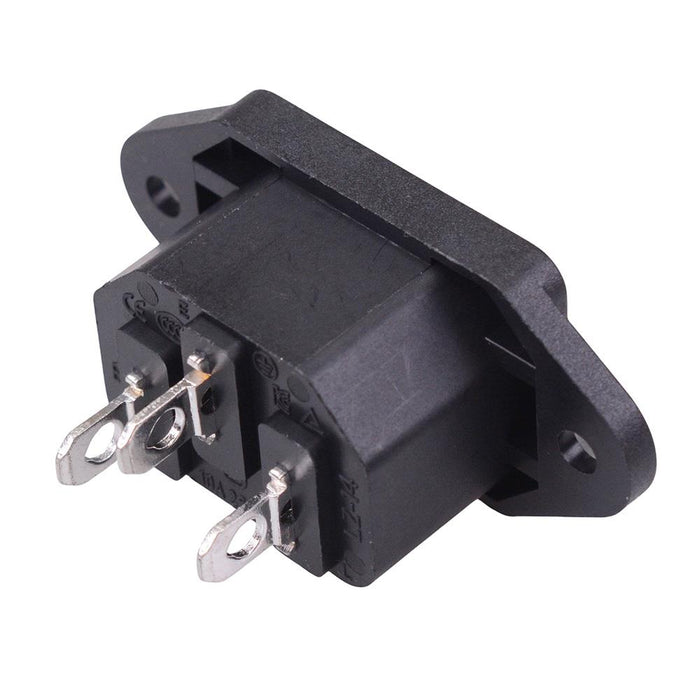

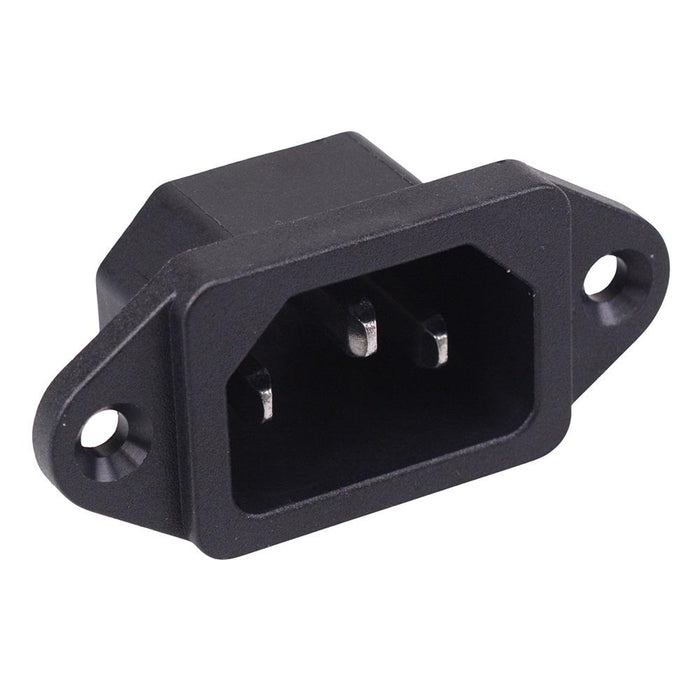

C14 IEC Chassis Mount Inlet Socket 10A
SKU 550385
MPN: SE-AS-301
Availability:
Only 2 left!
Original price
£0.51
-
Original price
£0.51
Original price
£0.51
£0.58
£0.58
-
£0.58
Current price
£0.58
3 pole C14 chassis inlet connector featuring 4.8mm quick connect terminals and 10A 250VAC rating. The connector is suitable for mating with C13 connectors in a wide range of power applications.
Panel cut-out: 27.4 x 19.8mm Rating: 10A 250VAC 4.8mm quick connect terminals 40mm fixing centres pitch PBT UL94V-0 housing material
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 27.4 x 19.8mm |
| Termination Method | Quick Connect |
| Type | C14 |
| Voltage Rating | 250VAC |
