C14 IEC Switched Inlet Socket 10A
SKU 485486
MPN: SE-AS-303-3
Availability:
192 in stock
Original price
£1.57
-
Original price
£1.57
Original price
£1.57
£1.57
£1.57
-
£1.57
Current price
£1.57

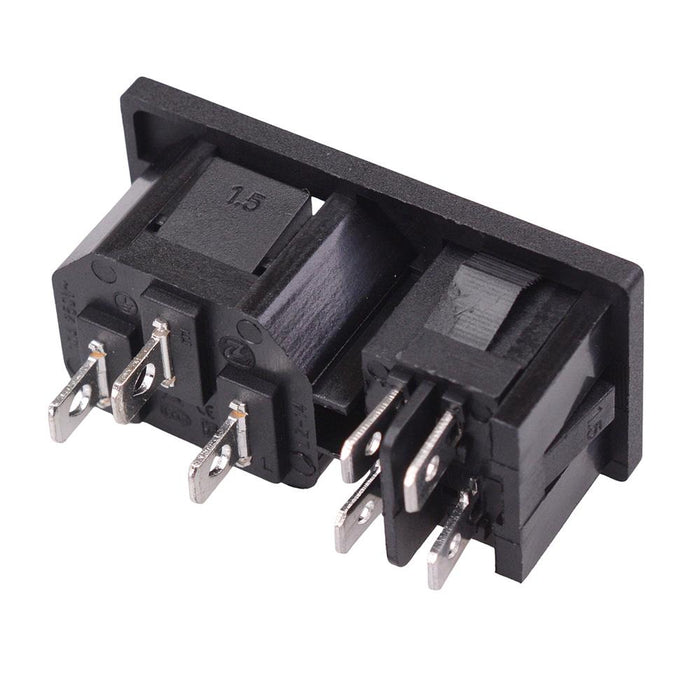

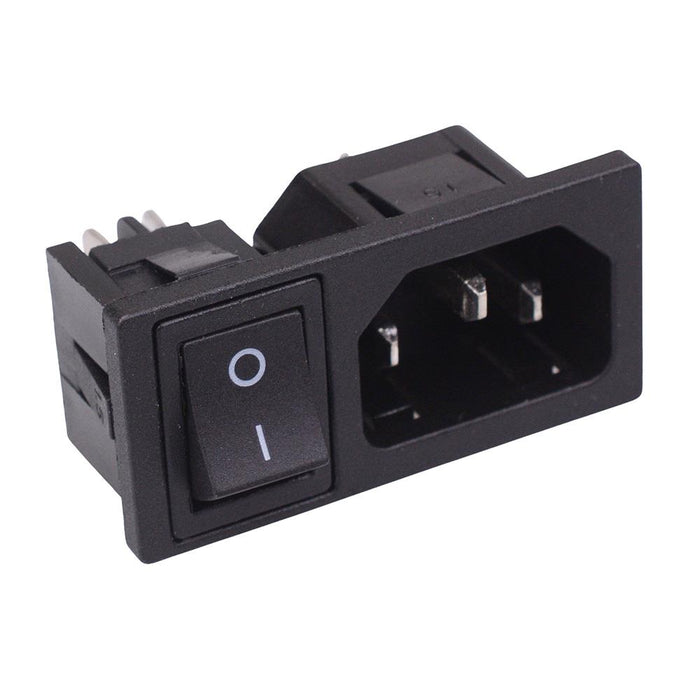

Switched 3 pole C14 IEC chassis Inlet connector featuring quick connect 4.8mm terminals and 10A current rating. The inlet is suitable for snap-in mounting in a wide range of power connection applications.
Panel cut-out: Rating: 10A 250VAC 4.8mm x 0.8mm quick connect terminals Includes DPST rocker switch Nickel plated brass contacts Dimensions: 49 x 24 x 27.7mm (length x height x depth)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 45.9 x 20.1mm |
| Termination Method | Quick Connect |
| Type | C14 |
| Voltage Rating | 250VAC |
