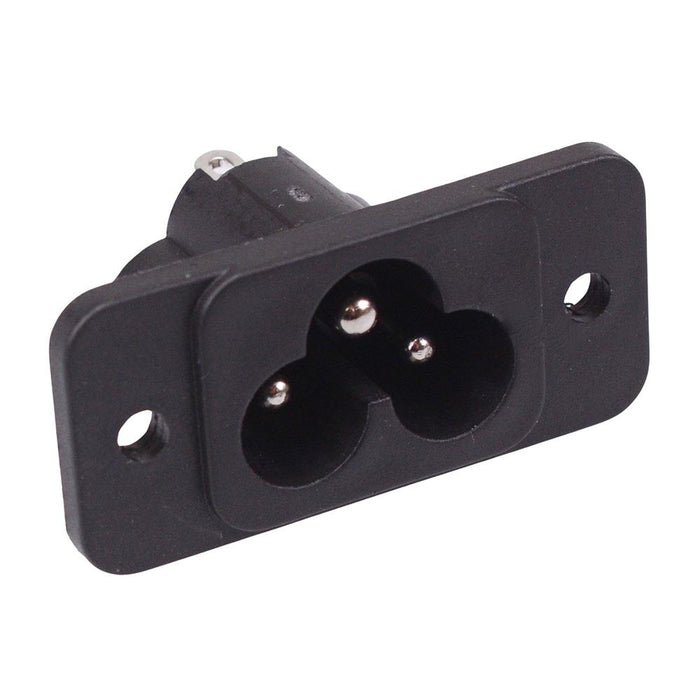

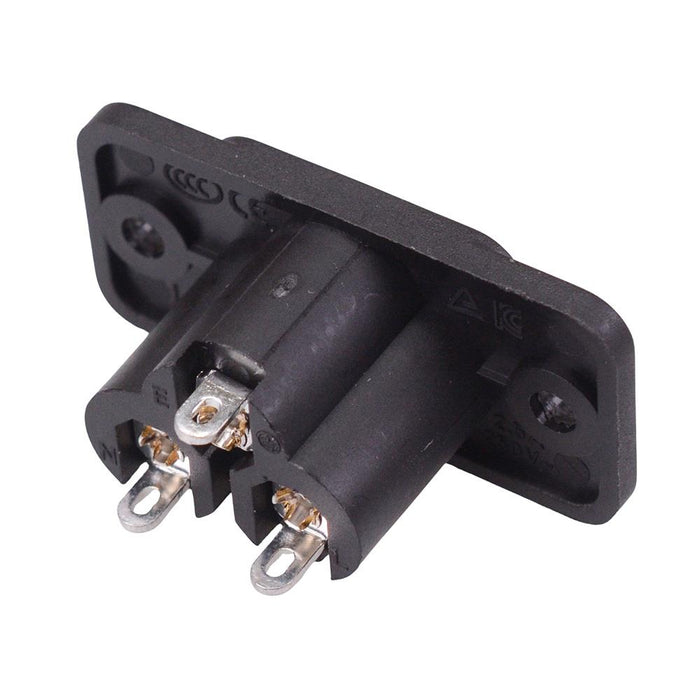

C6 IEC Clover Leaf Chassis Inlet Socket Solder Terminals 2.5A
SKU 481873
MPN: SE-AS-111A-01
Availability:
435 in stock
Original price
£0.72
-
Original price
£0.72
Original price
£0.72
£0.72
-
£0.72
Current price
£0.72
Chassis mounting 3 pole C6 inlet socket featuring solder terminals and 2.5A current rating. The connector is suitable for a wide range of power connection applications.
30mm fixing centres Solder terminals Panel cut-out: 20.6 x 15.5mm Rating: 10A 250VAC Dimensions: 39 x 18.3 x 20.9mm (length x height x depth)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 2.5A |
| Housing Material | PA66 |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +70°C |
| Panel Cut Out | 20.6 x 15.5mm |
| Termination Method | Solder |
| Type | C6 |
| Voltage Rating | 250VAC |
