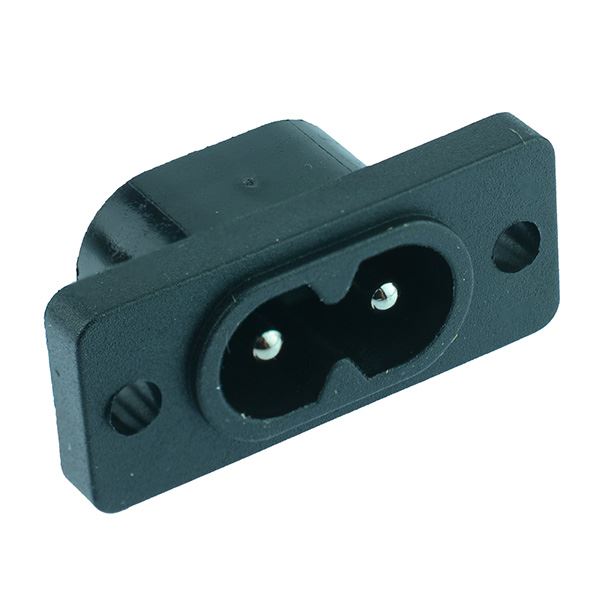

C8 IEC Chassis Inlet Socket Solder Terminals 2.5A
SKU 481874
MPN: SE-AS-222-11
Availability:
152 in stock
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
£0.78
£0.78
-
£0.78
Current price
£0.78
Chassis mount C8 figure 8 inlet socket featuring solder terminals and 2.5A current rating. The connector is suitable for a wide range of power connection applications.
Panel mounting Panel cut-out: 21 x 12.4mm Fixing centres pitch: 28mm Rating: 2.5A 250VAC Housing material: PBT Solder terminals Dimensions: 34.8 x 21.5 x 14.9mm (width x depth x height)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 2.5A |
| Housing Material | PA66 |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 21 x 12.4mm |
| Termination Method | Solder |
| Type | C8 |
| Voltage Rating | 250VAC |
