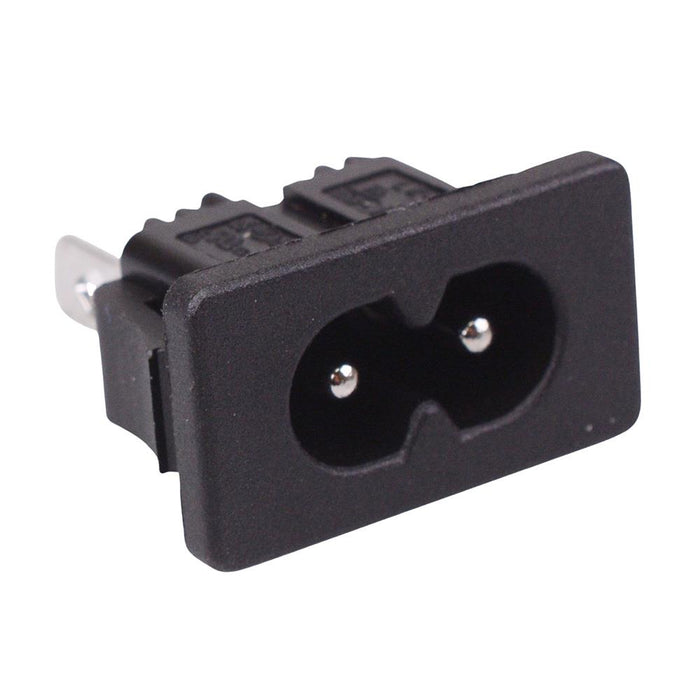

C8 IEC Panel Mount Inlet Power Socket Solder Terminals 2.5A
SKU 489594
MPN: SE-AS-222-5L
Availability:
Out of stock
Sold out
Original price
£0.42
-
Original price
£0.42
Original price
£0.42
£0.42
£0.42
-
£0.42
Current price
£0.42
Panel mounting C8 figure 8 inlet socket featuring solder terminals and 2.5A 250VAC rating. The connector is suitable for a wide range of power connection applications.
Panel mounting Panel cut-out: 18.8 x 7.3mm Rating: 2.5A 250VAC PA66 housing 4.8mm quick connect terminals Dimensions (excluding terminals): 28 x 16 x 25.2mm (width x height x depth)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 2.5A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Panel Cut Out | 18.8 x 7.3mm |
| Termination Method | Quick Connect |
| Type | C8 |
| Voltage Rating | 250VAC |
