Cat Whisker Industrial Limit Switch IP65 10A 250V
by Xurui
SKU 489605
MPN: XZ-9106
Availability:
19 in stock
Original price
£5.98
-
Original price
£5.98
Original price
£5.98
£5.98
-
£5.98
Current price
£5.98

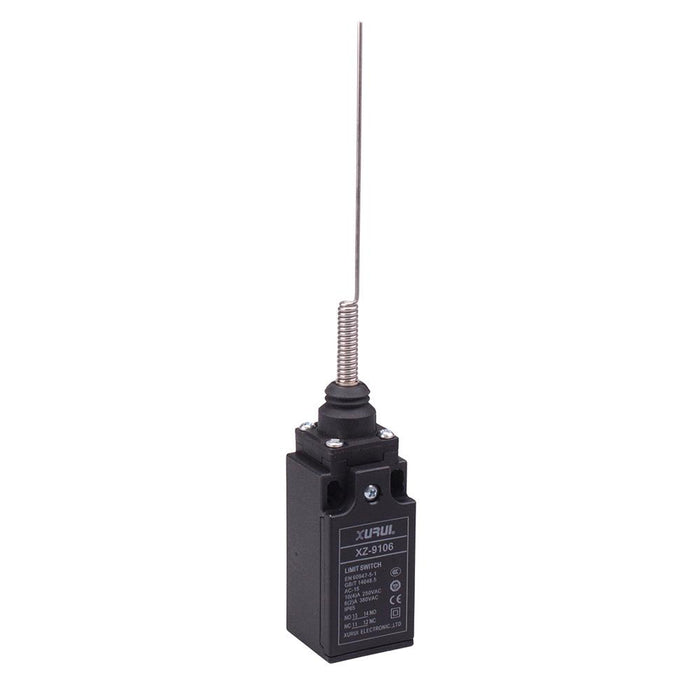

Industrial limit switch featuring a cat whisker actuator and 2NO/2NC contacts. The switch is housed in a lightweight plastic housing and is suitable for a wide range of industrial, automation and mechanical applications.
Rating: 10(4)A/250VAC, 6(2)A 380VAC Push button plunger IP65 protection rating 2NO/NC contacts Enclosed screw terminals Operating force max: 100g Release force min: 30g Dimensions: 195.0 x 30.5 x 30.0mm (height x width x depth)
Specification
Back Order Lead Time | 120 Days |
Contact Configuration | DPDT |
Contact Rating | 10A 250VAC |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
MOQ | 1 |
Number of Positions | 2 |
Operating Force | 100g Max |
Operating Temperature | -10°C to +70°C |
Protection Level | IP65 |
Release Force | 30g Min |
Terminal Type | Screw |
Voltage Rating | 250VAC |
