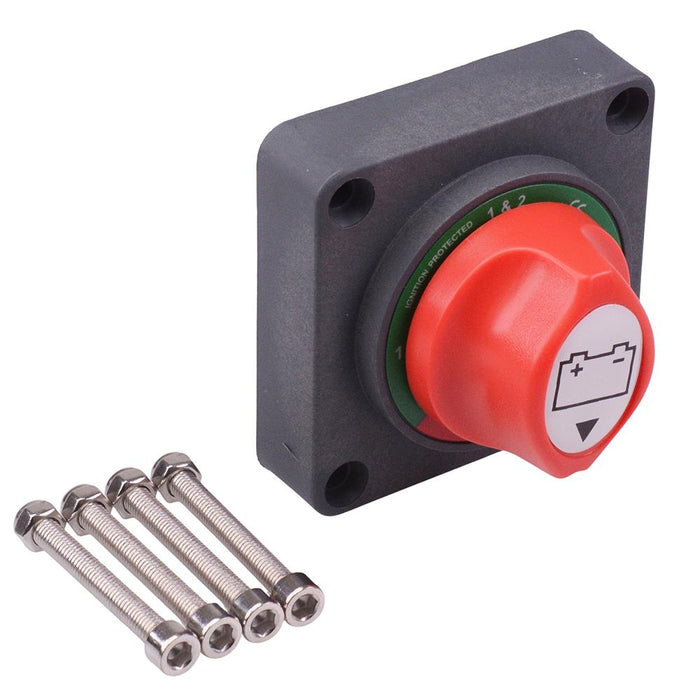

Changeover 4 Position Panel Mount Battery Isolator Switch 275A 12-48VDC
SKU 492877
MPN: SE-5632-2
Availability:
49 in stock
Original price
£11.70
-
Original price
£11.70
Original price
£11.70
£11.70
-
£11.70
Current price
£11.70
Changeover panel mount battery isolator switch housed in a compact package with low profile design. The switch features M10 stud terminals and is ignition protected, suitable for automotive or marine applications with a continuous current up to 275A.
Function: changeover (battery 1, battery 2, battery 1+2, off) Continuous current: 275A Crank current: 1250A Voltage rating: 12-48VDC Stud size: 2*M10 Mounting hole pitch: 55mm Dimensions: 68 x 68 x 68.5mm (width x height x depth) Includes mounting bolts and nuts
Specification
| Back Order Lead Time | 120 Days |
| Continuous Rating | 275A |
| Current Rating | 275A |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 4 |
| Switch Operation | Changeover |
| Terminal Type | M10 Studs |
| Voltage Rating | 48VDC |
