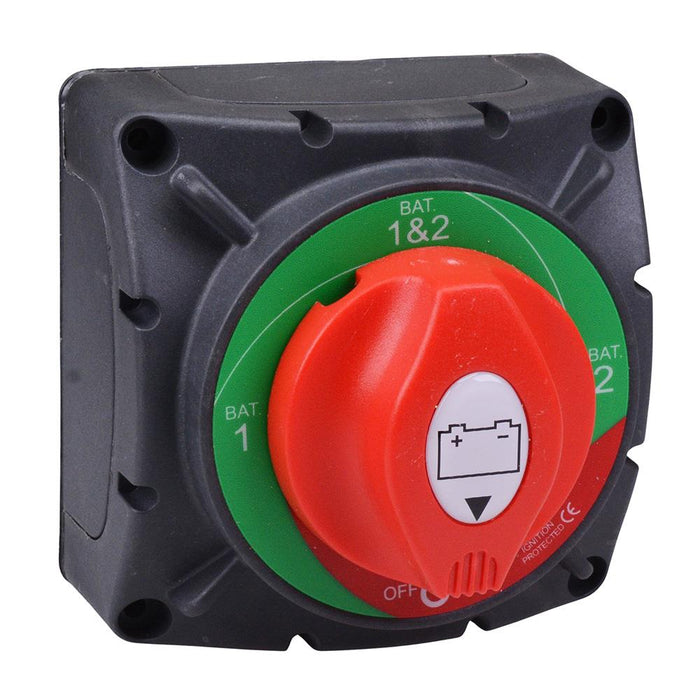

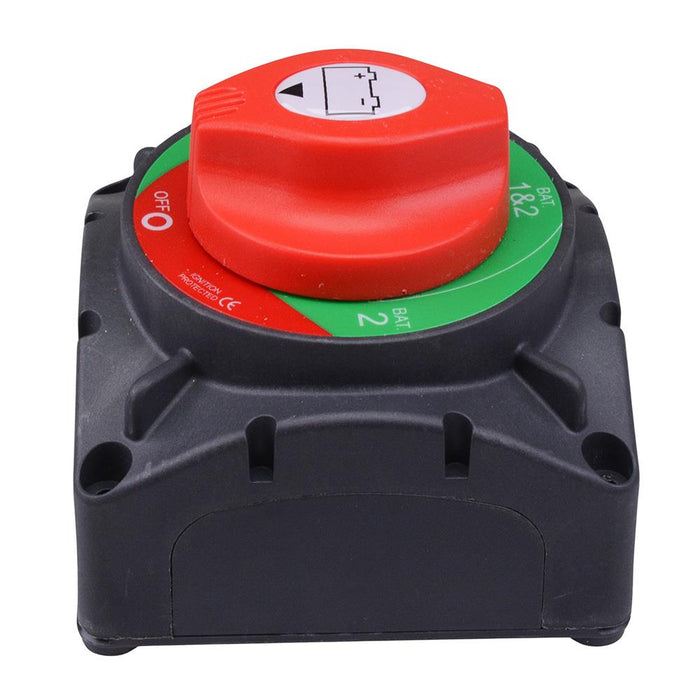

Changeover Heavy Duty Battery Isolator Switch 350A 12-48VDC
SKU 489047
MPN: SF50645-2
Availability:
23 in stock
Original price
£31.04
-
Original price
£31.04
Original price
£31.04
£31.04
-
£31.04
Current price
£31.04

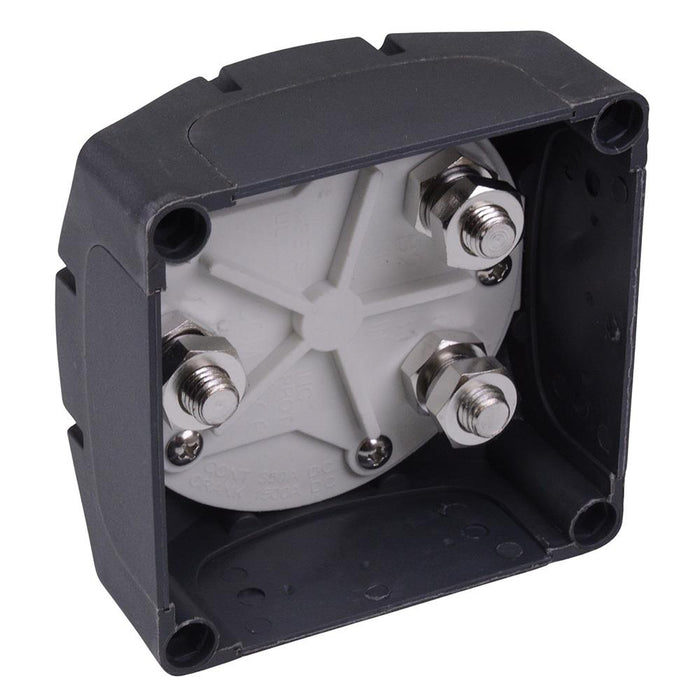

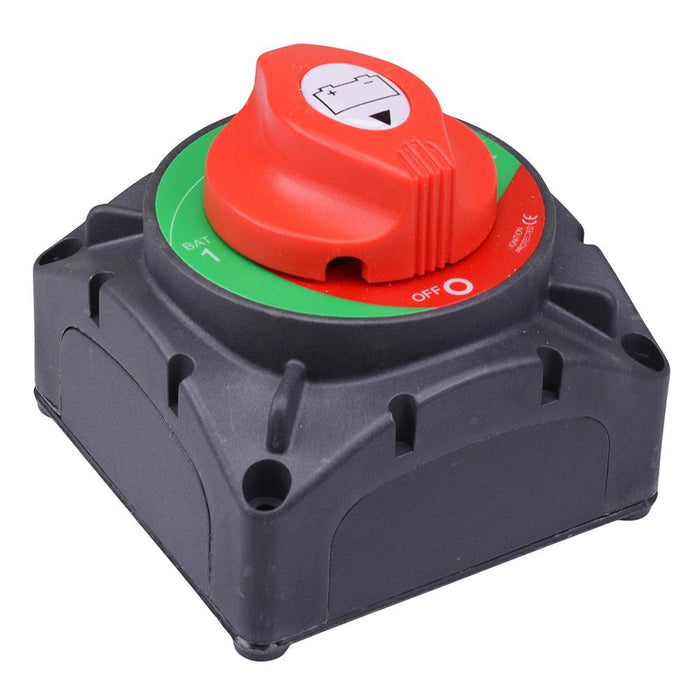

Heavy duty battery changeover isolator switch featuring a rotary actuator and high curent capacity. The switch features 3*M12 stud terminals and square housing with removable panels for wire access. The isolator is suitable for a wide range of applications up to 48VDC including automotive.
3*M12 studs Functions: battery 1, battery 2, battery 1 & 2 Removable side panels Continuous current rating: 350A (12V) Crank current rating: 1500A (12V) Voltage rating: 12-48VDC Dimensions: 102 x 102 x 90mm (length x width x height) Includes fastening hardware and instructions
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 350A |
| Mounting Style | Chassis Mount |
| Number of Positions | 4 |
| Switch Operation | Changeover |
| Terminal Type | M12 Studs |
| Voltage Rating | 48VDC |
