Cigarette Light Socket + Ammeter with Panel Mount Housing 7-33VDC A13-144

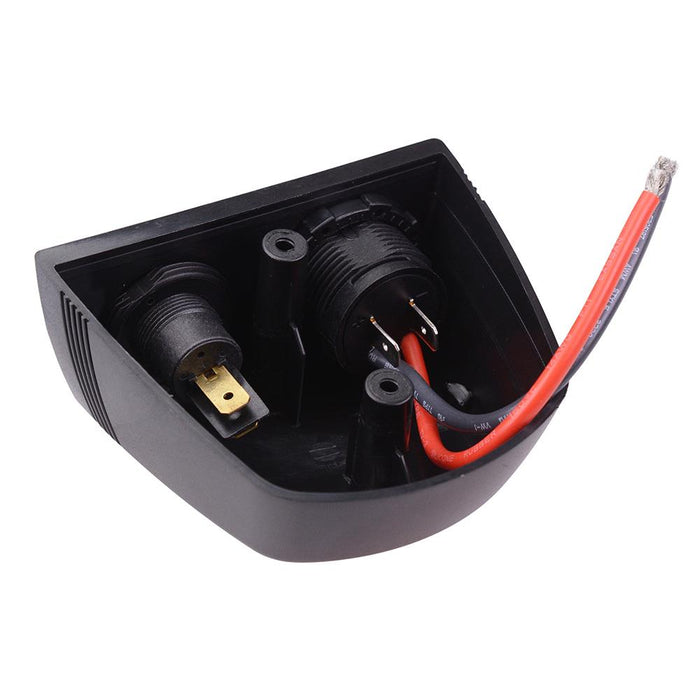

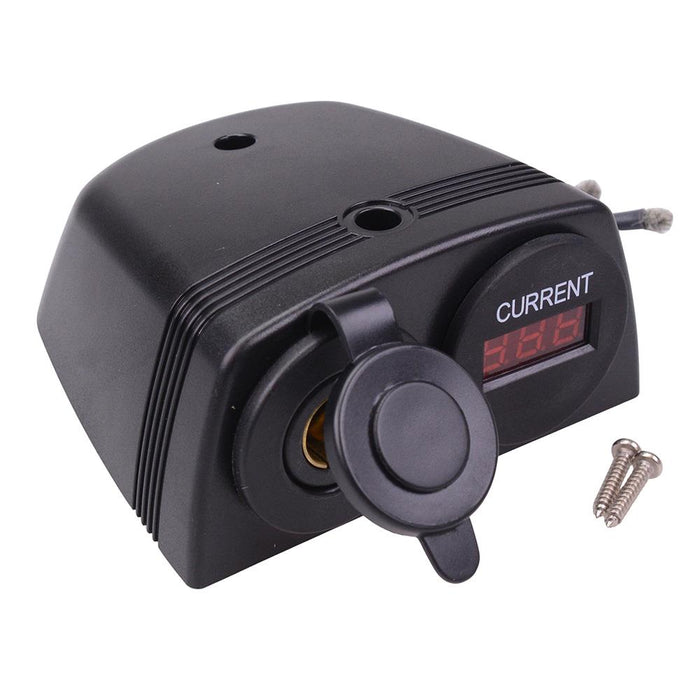

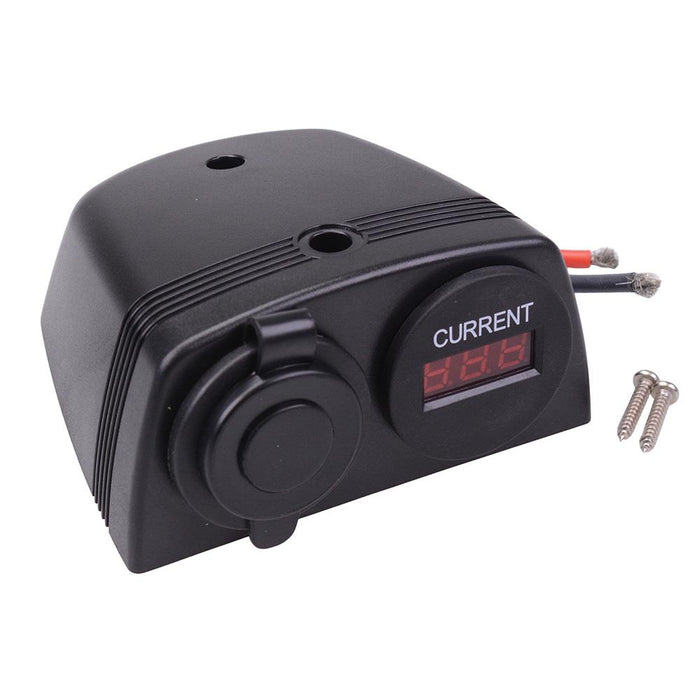

The A13-144DA251BHD-BB3 is a cigarette lighter socket and ammeter with mounting panel. The meter features 7-33VDC operating voltage and is capable of measuring from 0-20A current. The meter features a red LED display and is protected against reverse polarity and surge protection. The housing allows the meter and socket to be easily mounted to a panel, suitable for 12V and 24V applications including automotive.

Cigerette lighter socket with cover

0-20A ammeter

Red LED display

Operating voltage: 7-33VDC

Reverse polarity protection

Surge protection

Rating: 12V/24VDC 20A

6.3mm quick connect terminals and 14AWG tail leads

Mounting hole pitch: 40mm

Dimensions: 82.4 x 91.8 x 45.3mm (depth x width x height)
