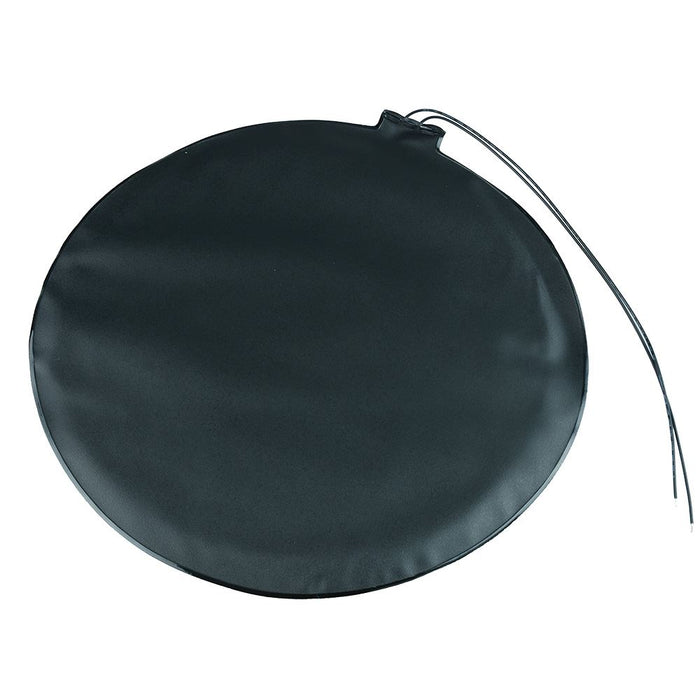

Circular Pressure Mat 305mm Diameter - PM4978

by Comus
SKU 552453

MPN: MAC-305-B-300-2

Availability:
Only 3 left!
Original price £17.17 - Original price £17.17
Original price
£17.17
£17.17 - £17.17
Current price £17.17
PM4978 circular pressure sensitive mat featuring NO contacts, suitable for applications including alarm systems, automatic doors, patient bed monitoring and seat occupancy detection.

  • Normally open contacts
  • Dimensions: 305 x 3mm (Diameter x Thickness)
  • Operating pressure: 25kg over 50mm²
  • Mat material: Seem welded PVC
  • 150mm of 0.22mm² Black PVC insulated cable
  • Maximum switching voltage: 25V DC
  • Maximum switching current: 0.25A
  • Specification
    Back Order Lead Time 120 Days
    Colour Black
    Contact Configuration Normally Open
    Current Rating 0.25A
    Operating Force 25Kg over 50mm²
    Protection Level IP64
    Voltage Rating 25VDC
