CK1029 12 Position 1 Pole BBM Rotary Switch 150mA 250V
by Lorlin
SKU 481510
MPN: CK1029
Availability:
Only 2 left!
Original price
£2.29
-
Original price
£2.29
Original price
£2.29
£2.29
£2.29
-
£2.29
Current price
£2.29

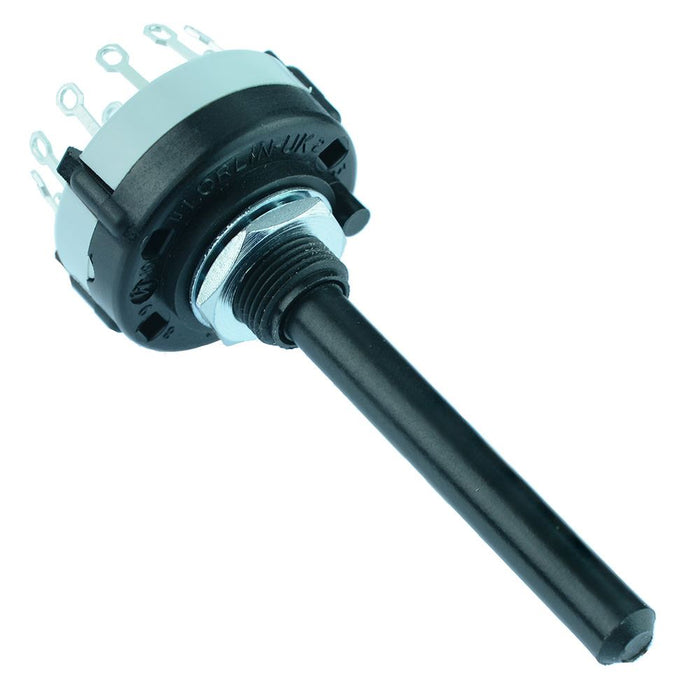

Single pole rotary switch manufactured by Lorlin featuring 12 positions featuring break before make solder contacts and 6mm spindle, housed in a 27.5mm diameter UL-V0 rated body.
1 pole 12 positions Break before make solder contacts Standard 30dg indexing Adjustable stop to restrict number of positions 27.5mm diameter body Rating: 150mA 250Vac/dc, 1A 24Vdc Lorlin CK series
Specification
| Back Order Lead Time | 90 Days |
| Contact Configuration | 1P12T |
| Contact Rating | 0.15A 250V, 1A 24VDC |
| Current Rating | 1A @ 24VDC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Ways | 12 |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 10mm |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
