CK1041 4 Position 3 Pole MBB Rotary Switch 150mA 250V
by Lorlin
SKU 481508
MPN: CK1041
Back Order Availability: 90
Availability:
385 in stock, ready to be shipped
Original price
£2.31
-
Original price
£2.31
Original price
£2.31
Inc VAT
£2.31
-
£2.31
Current price
£2.31
Inc VAT

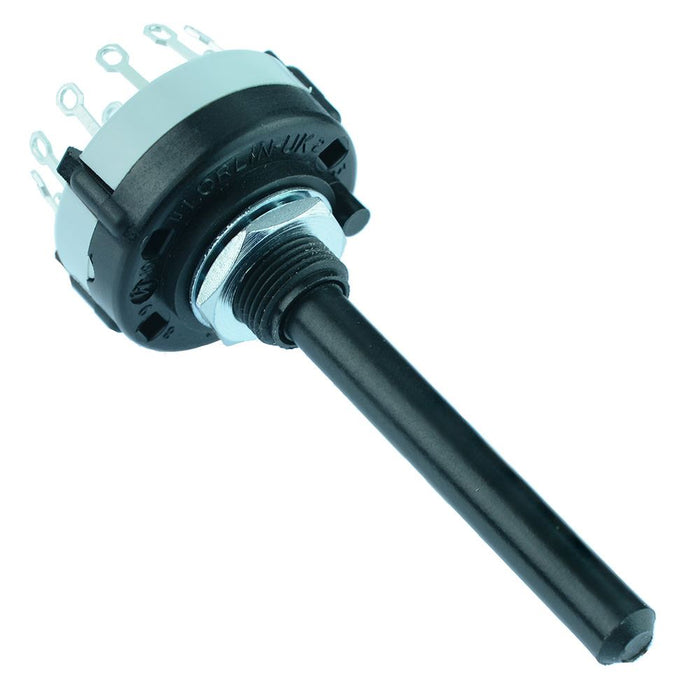

3 pole rotary switch manufactured by Lorlin featuring 4 positions featuring make before break solder contacts and 6mm spindle, housed in a 27.5mm diameter UL-V0 rated body.
3 poles 4 positions Make before break solder contacts Standard 30dg indexing Adjustable stop to restrict number of positions 27.5mm diameter body Rating: 150mA 250Vac/dc, 1A 24Vdc Lorlin CK series
Specification
| Back order lead time | 90 |
| Contact configuration | 3P4T |
| Contact rating | 0.15A 250V, 1A 24VDC |
| Current rating | 1A @ 24VDC |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 3 |
| Number of ways | 4 |
| Operating temperature | -30°C to +65°C |
| Panel cut out | 10mm |
| Terminal type | Solder |
| Voltage rating | 250VAC |
