Cool White 5mm Multi-Voltage (3-15V) LED Kit - Box of 50
by OptoSupply
SKU 486693
MPN: OKLEDT5050WAW
Availability:
Out of stock
Sold out
Original price
£7.36
-
Original price
£7.36
Original price
£7.36
Inc VAT
£7.36
-
£7.36
Current price
£7.36
Inc VAT

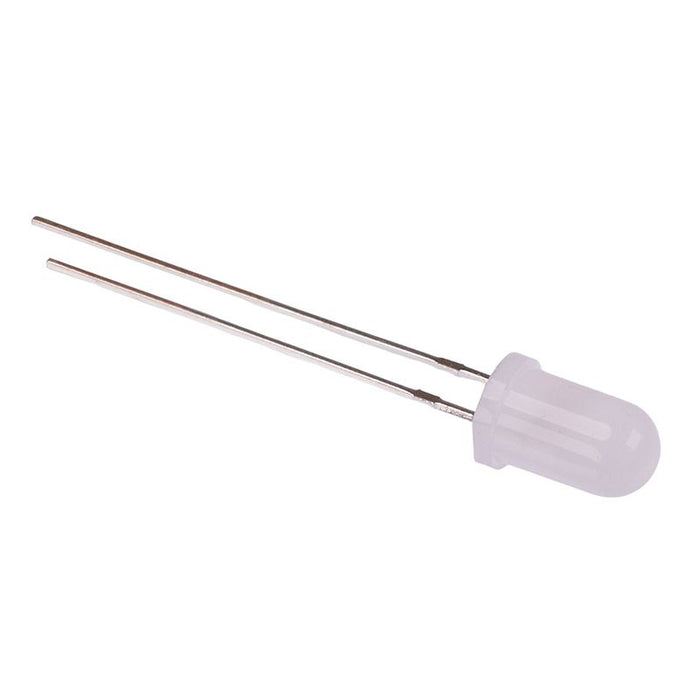

Cool white 5mm universal LED lamps featuring a diffused lens complete in a handy box. The LEDs feature a built-in resistor allowing them to be used with a 3-15V input voltage range, not only does this save on cost but also space and time by not having to install an additional resistor. The LEDs are widely used for indication applications and with microcontrollers including Arduino, Raspberry Pi etc.

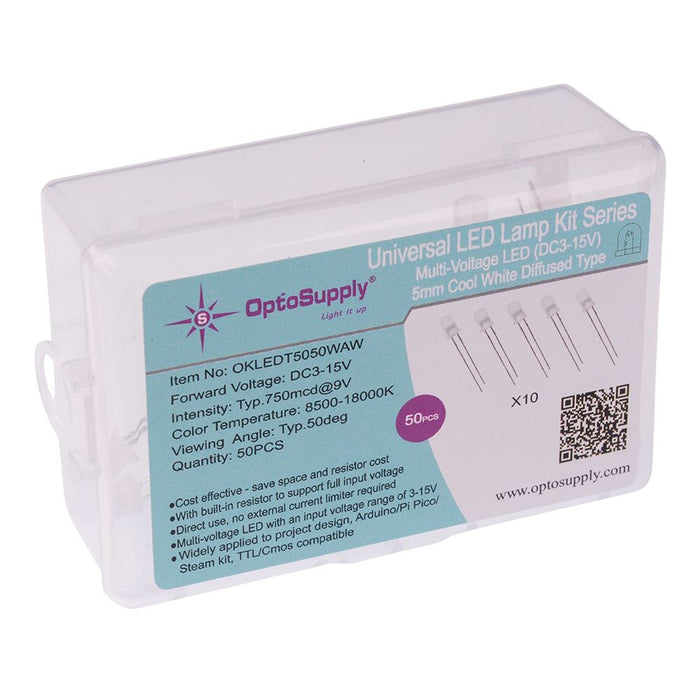

Box of 50 LEDs White diffused lens 5mm package with 2.54mm lead pitch Input voltage: 3-15VDC Built-in resistor Viewing angle: 50deg Colour temperature: 8500-18,000K Luminous intensity: 750mcd @ 9V
Specification
| Back order lead time | 45 Days |
| Colour | Cool White |
| Colour temperature | 8500-18,500K |
| Diameter | 5mm |
| Forward current | 7.5mA |
| Forward voltage | 3-15V |
| Lens colour | White |
| Lens shape | Round |
| Luminous intensity | 750mcd |
| Mode | Constant |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Operating temperature | -30°C to 85°C |
| Package | 5mm |
| Packaging | Box |
| Viewing angle | 50° |
