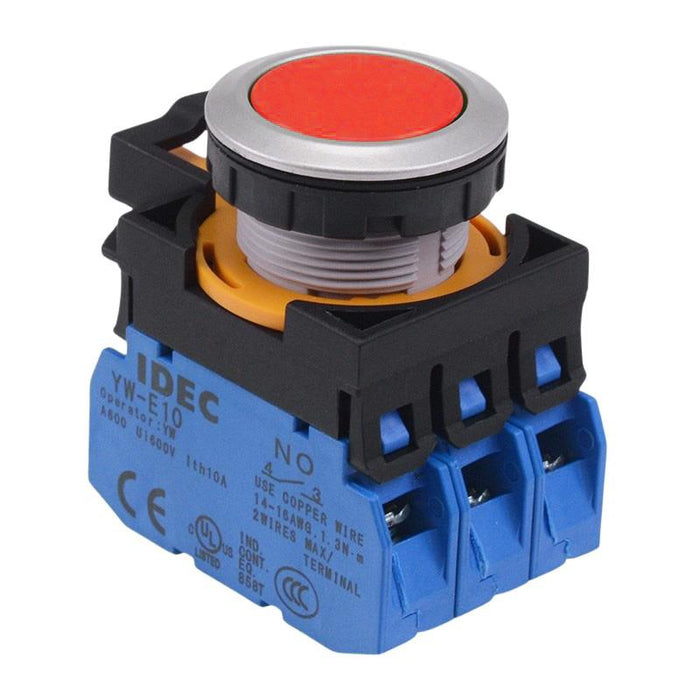

CW4B-A1E30R Red Metallic Maintained Push Button Switch 3NO IP65 IDEC

by IDEC
SKU 934166

MPN: CW4B-A1E30R

Availability:
8 in stock
Original price £34.46 - Original price £34.46
Original price
£34.46
£34.46 - £34.46
Current price £34.46
The CW4B-A1E30R is a flush mount industrial push button switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • Red button
  • 3NO contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Maintained
    Colour Red
    Contact Configuration 3NO
    Contact Rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current Rating 10A
    Head Type Flush
    Illuminated No
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +60°C
    Panel Cut Out 22.3mm
    Product Series CW
    Protection Level IP65
    Rated Thermal Current 10A
    Terminal Type Screw
    Voltage Rating 300V
