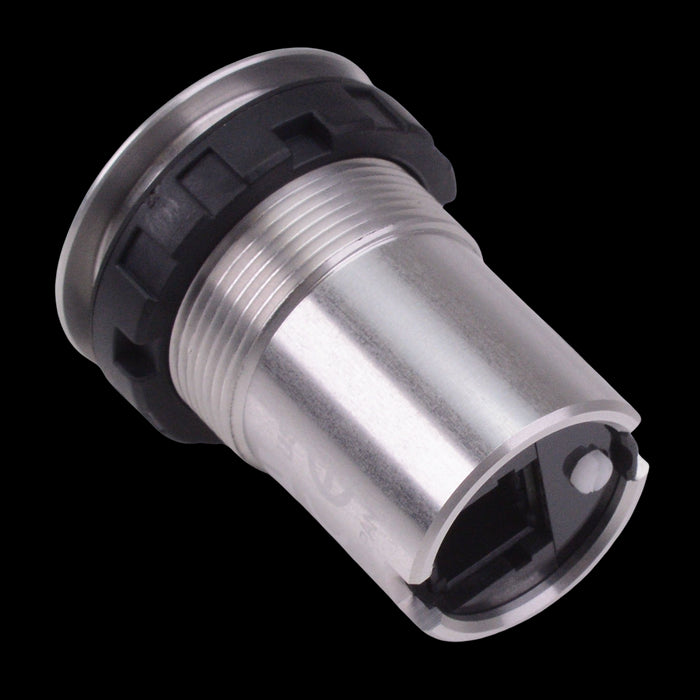

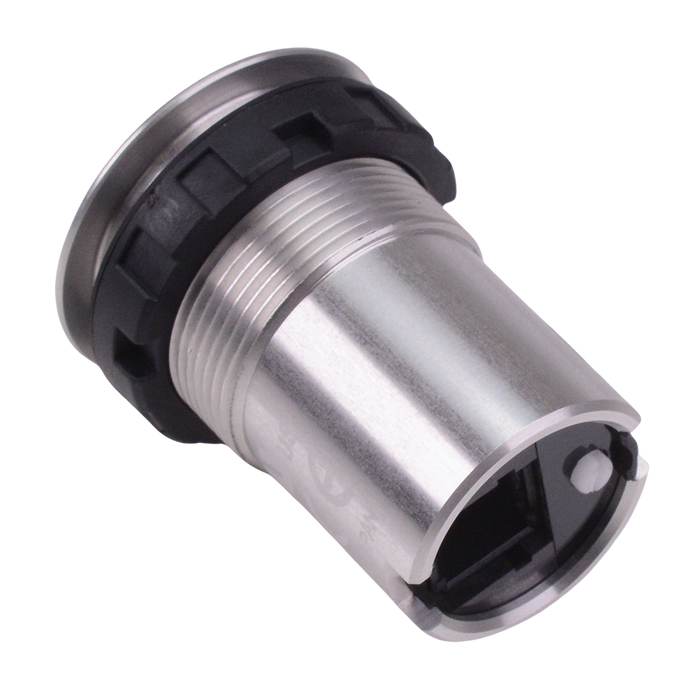

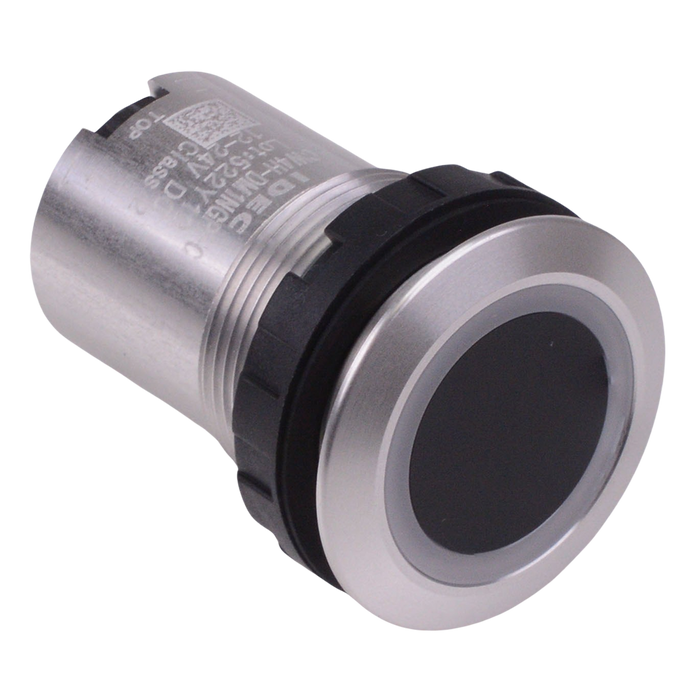

CW4H-DM1NGR-C IDEC Green / Red LED Flush Metal Touchless Switch IP67

The CW4H-DM1NGR-C is a flush 22mm touchless switch manufactured by IDEC. The switch features a metal bezel and green / red illumination with PNP control method. The switch can be operated by just waving your hand and it has a maximum sensing range from 70mm to 270mm, adjustable with the rear sensitivity control.
The switch features the functions of a photoelectric sensor and two indicator lights integrated into a single switch. The touchless CW series is suitable for replacing existing mechanical switches and reduces the risk of viruses and bacteria spreading in applications with frequent access. Due to the innovative and durable design the switch is suitable for a wide range of applications including use in public facilities, parking garages, warehousing, production lines, human sensing etc.

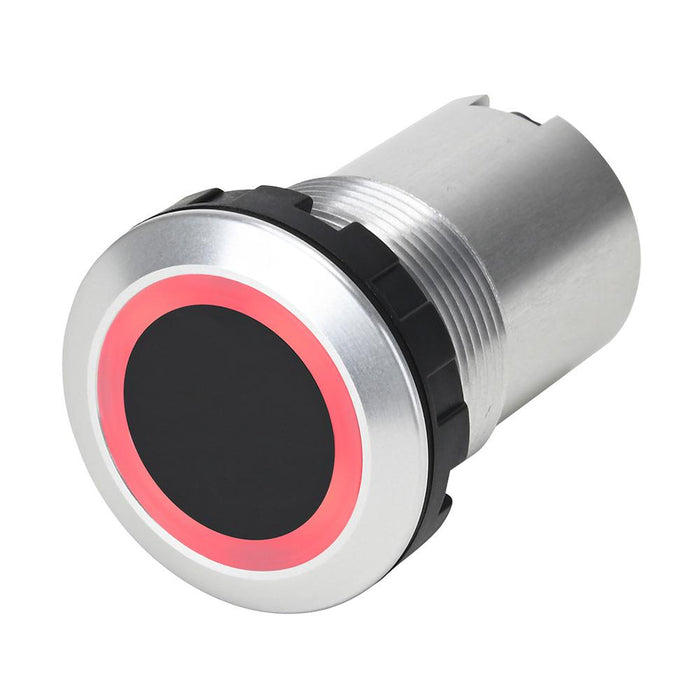

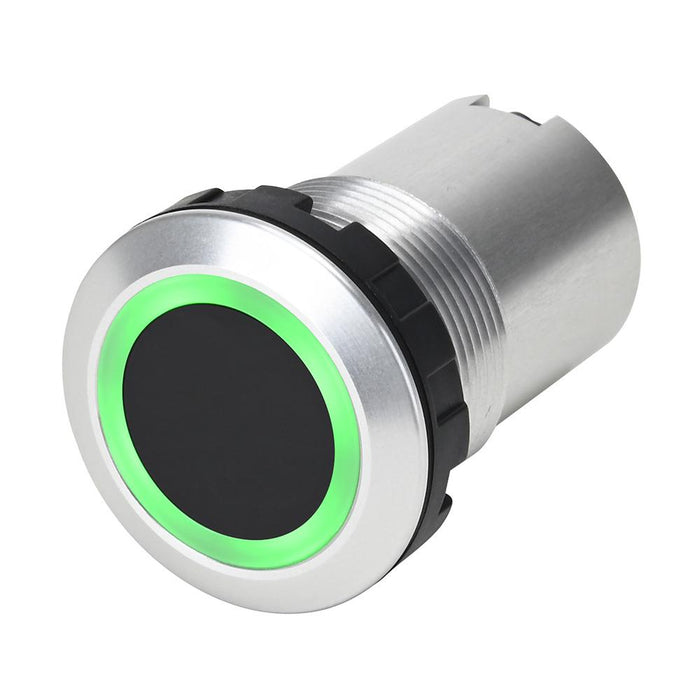

Green / red LED illumination

Panel cut-out: 22.3mm

PNP control method

Aluminium alloy bezel

Sensing method: diffuse-reflective

Adjustable maximum sensing range: 70mm to 270mm

Rated voltage: 12-24VDC

Current draw: 40mA maximum (main circuit), 20mA maximum (illumination part)

Dimensions: 37 x 28mm (height x diameter)
